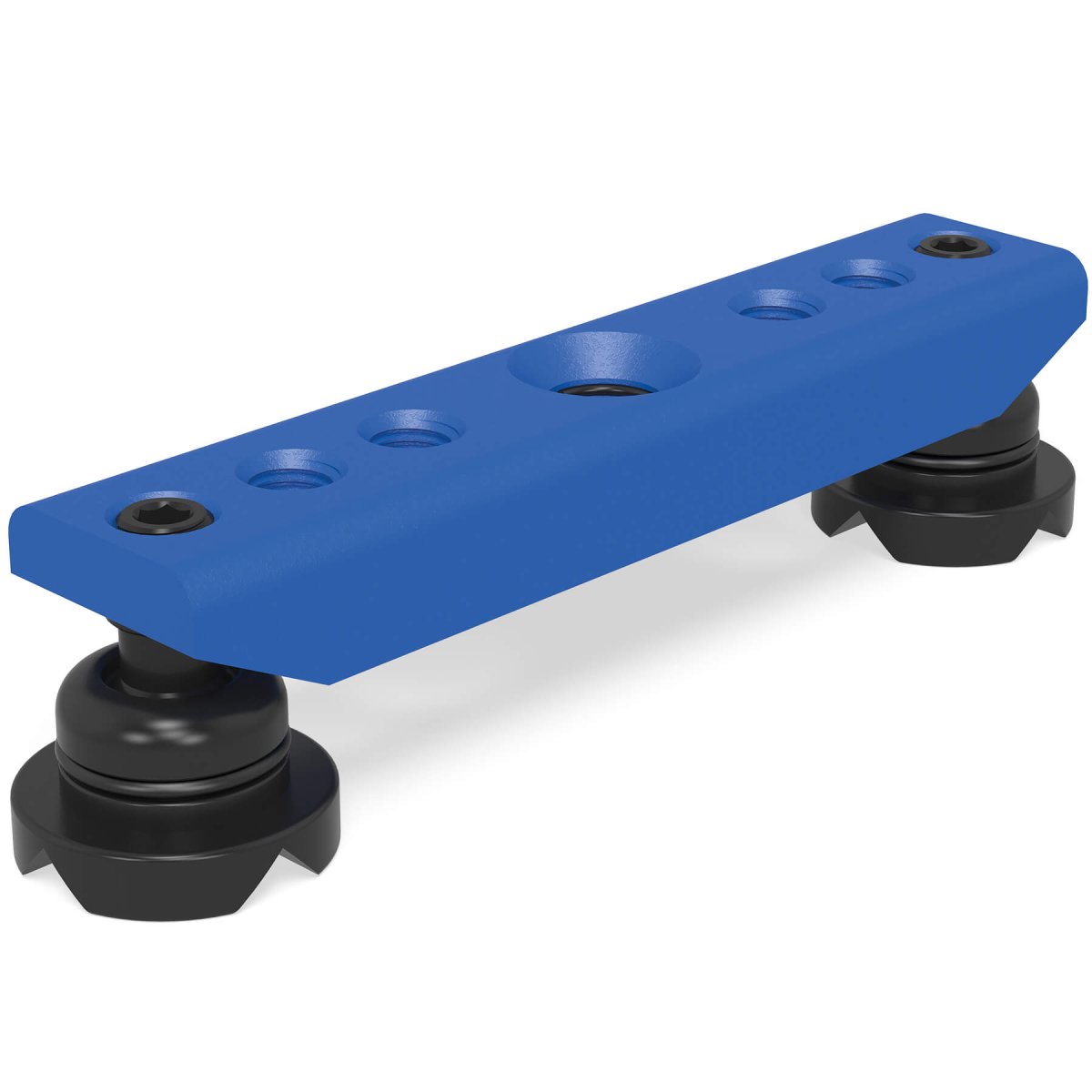

The 2-280210 Clamping Bridge 2P expands the versatility of Siegmund System 28 setups by providing two clamping spots simultaneously. It enables efficient workholding in hard-to-reach areas and ensures secure clamping of multiple components at once. Built for stability and adaptability, it supports pendulum compensation for uneven surfaces while maintaining precision.
- Measures 170mm (6.69" Inches) in length, 35mm (1.38" Inches) in width, and 20mm (0.79" Inches) in height.
- Weighs 1.12 lbs. (0.51 kg.), offering strength without excessive bulk.
- Includes clamping bridge, two ball pins, and two prisms for a complete setup.
- Prisms are interchangeable for safe, flexible attachment of welding elements.
- Quick shifting of the spherical pin ensures smooth and efficient operation.
Key Features:
- Two clamping spots in one bridge for simultaneous workholding.
- Pendulum compensation supports reliable clamping on uneven surfaces.
- Strong, compact design offers stability in tight or complex setups.
- Fully compatible with Siegmund System 28 boreholes and accessories.
Specifications:
- Item No.: 2-280210
- System: Siegmund System 28 Metric Series
- Length: 170mm (6.69" Inches)
- Width: 35mm (1.38" Inches)
- Height: 20mm (0.79" Inches)
- Weight: 1.12 lbs. (0.51 kg.)
- Material: Steel, Burnished and Precision-Machined
Common Uses:

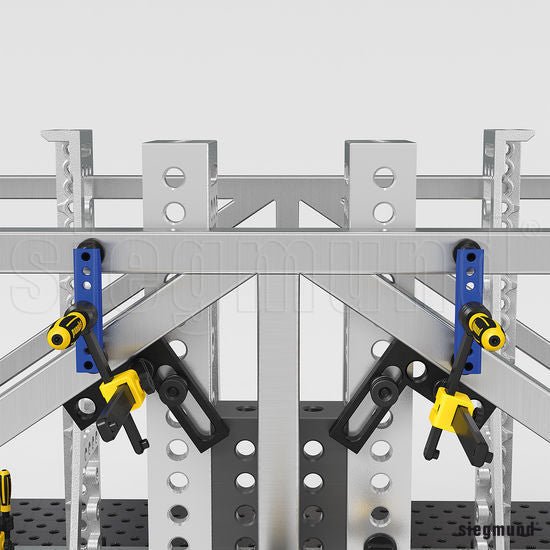

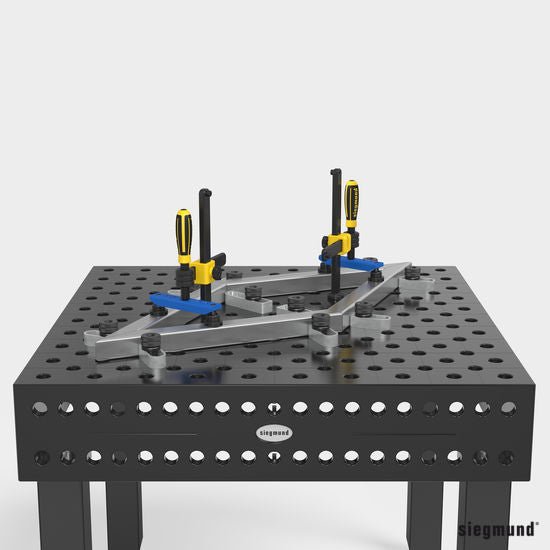

The 2-280210 Clamping Bridge 2P is used to secure multiple components at once, making it ideal for welding, assembly, and fixturing tasks that require efficiency and accuracy. Its ability to clamp on uneven surfaces and provide pendulum compensation ensures dependable performance in demanding shop environments.
