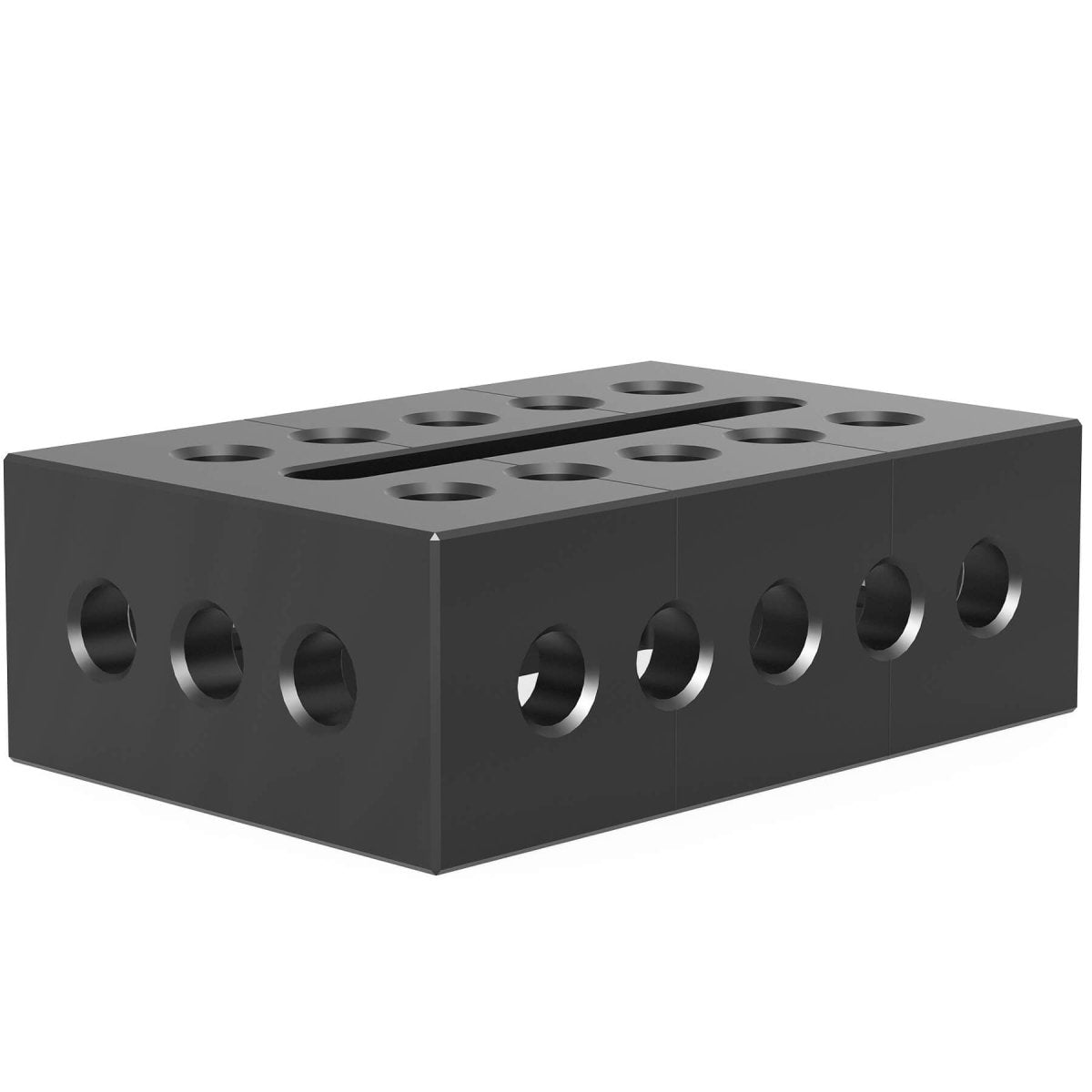

The Siegmund Support and Clamping Frame provides a strong, versatile connection point for fixturing elements in complex assemblies. With system boreholes on five sides, it offers wide flexibility in positioning and setup. Manufactured from high-quality GGG40 ductile cast iron and nitrided for durability, this frame ensures reliable performance in demanding shop environments.
- Can be used as a table extension or standalone console.
- Features a 50mm grid system on five sides for multiple setups.
- Supports both fixed and variable stops using boreholes and slots.
- Constructed from durable GGG40 ductile cast iron.
- Nitrided surface extends service life and wear resistance.
Key Features:
- Expands clamping and fixturing options with multi-sided boreholes.
- Provides secure stability with 25mm thick cast iron walls.
- Delivers long-term durability with nitrided finish.
- Supports flexible setup configurations in heavy fabrication.
- Compatible with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 300mm (11.81" Inches)
- Width: 200mm (7.87" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 42.99 lbs. (19.5 kg.)
- Material: GGG40 Ductile Cast Iron, Plasma Nitrided
Common Uses:

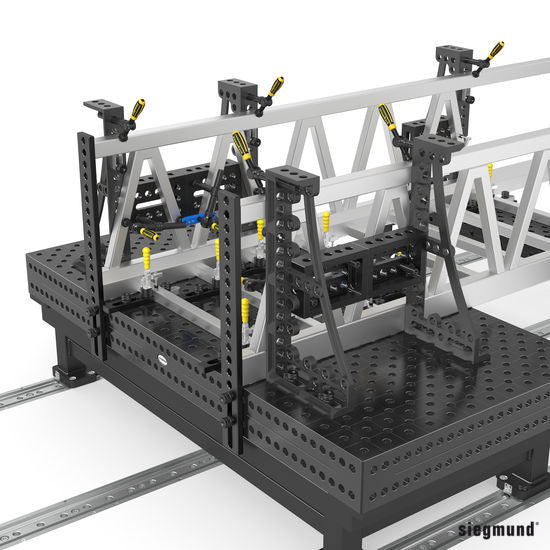

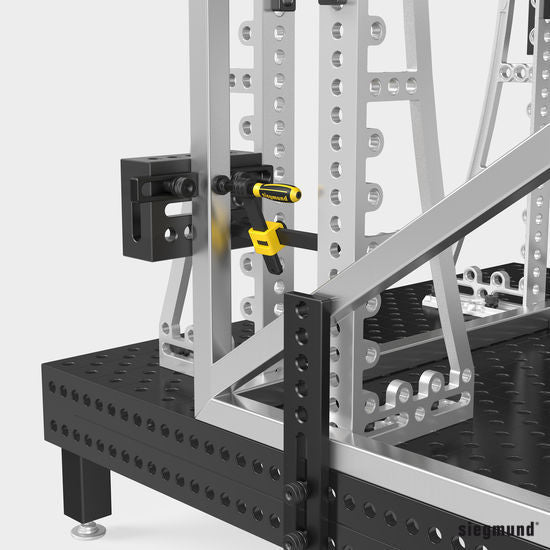

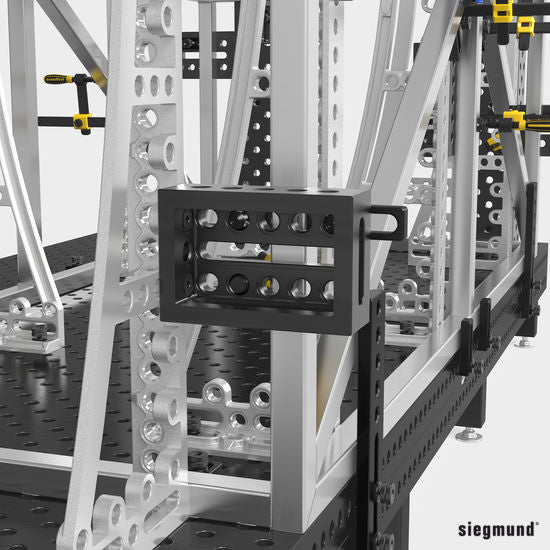

The Siegmund 300x200x100mm Support and Clamping Frame is used to connect and stabilize multiple fixturing components in large or intricate assemblies. Shops use it as a table extension, a support block, or a right-hand stop for precision work. Its borehole grid and elongated slots enable both fixed and adjustable stops, giving fabricators speed and flexibility in complex welds.
