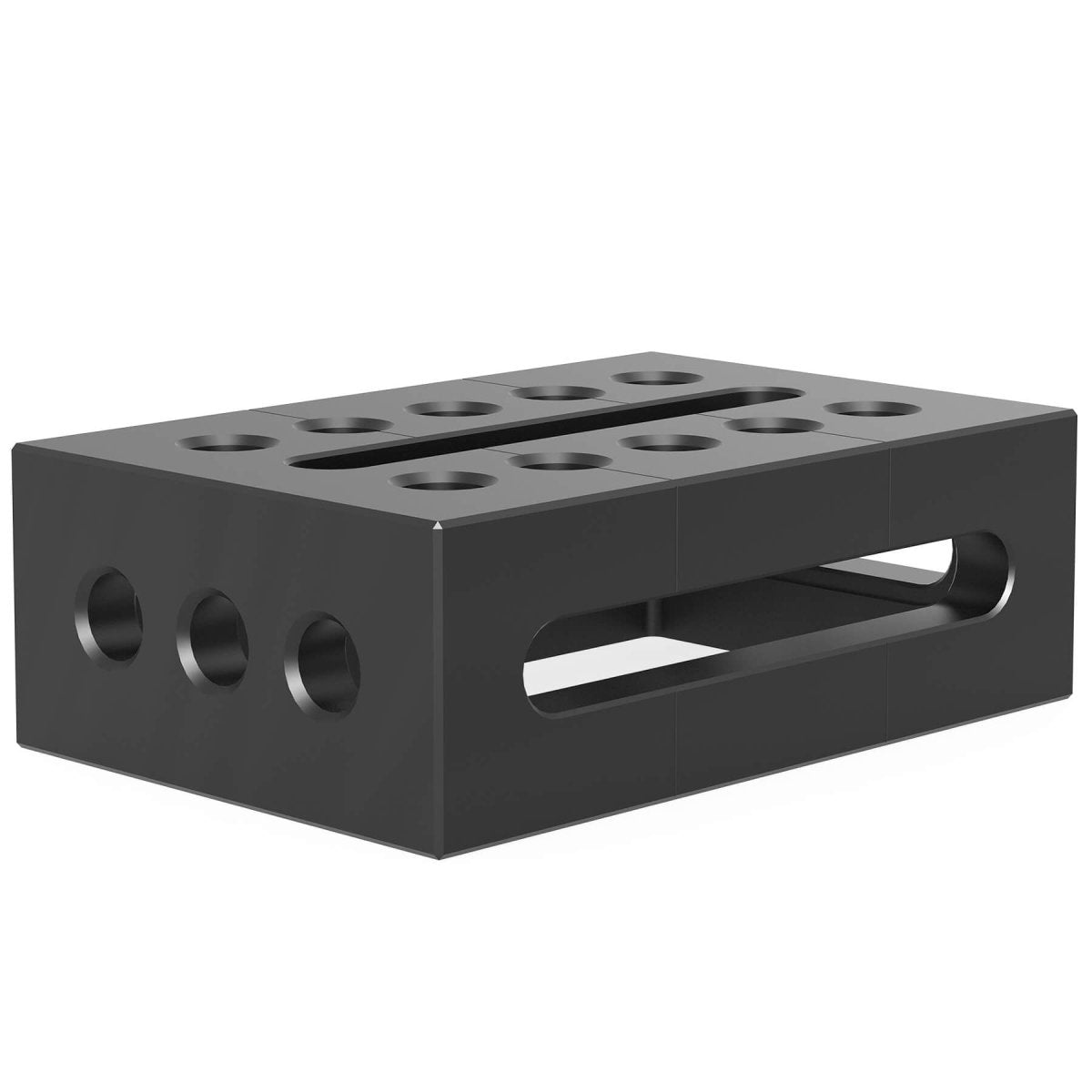

The Siegmund Support and Clamping Frame provides a durable and adaptable solution for connecting multiple fixturing elements. With boreholes on five sides, it enables a wide variety of setup configurations while maintaining rigidity under heavy use. Manufactured from high-quality GGG40 ductile cast iron and nitrided for long life, this left-side version ensures reliable performance for demanding fabrication projects.
- Functions as a table extension, console, or support block.
- Features a 50mm borehole grid on five sides for flexible setups.
- Supports both fixed and adjustable stops with boreholes and slots.
- Made from robust GGG40 ductile cast iron for lasting durability.
- Nitrided surface improves wear resistance and longevity.
Key Features:
- Expands setup options with multi-sided borehole grid.
- Ensures strength and rigidity with 25mm thick cast iron walls.
- Delivers long service life with nitrided protection.
- Provides secure support for complex fixturing applications.
- Works seamlessly with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 300mm (11.81" Inches)
- Width: 200mm (7.87" Inches)
- Height: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 42.99 lbs. (19.5 kg.)
- Material: GGG40 Ductile Cast Iron, Plasma Nitrided
Common Uses:

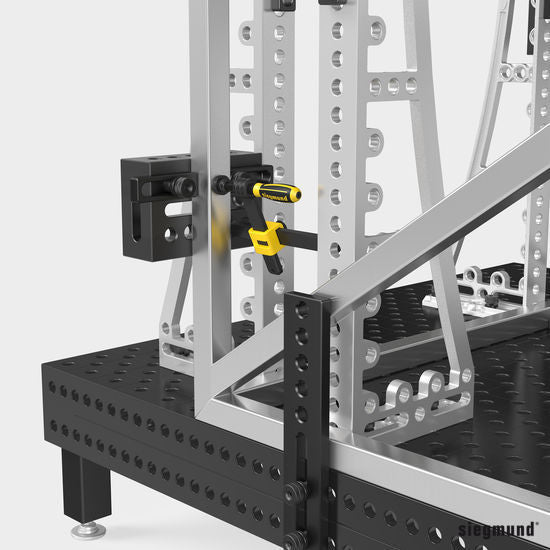

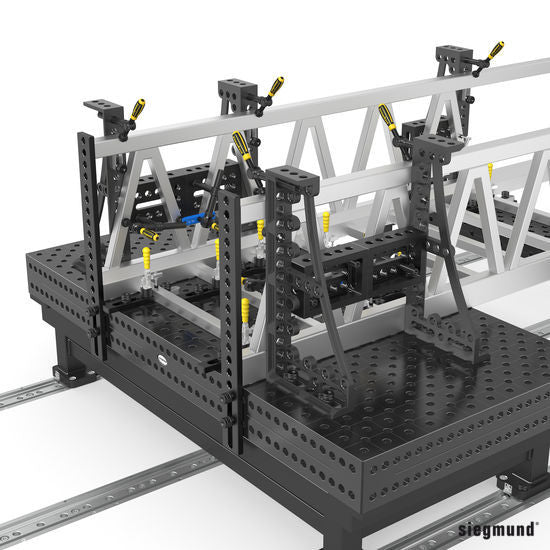

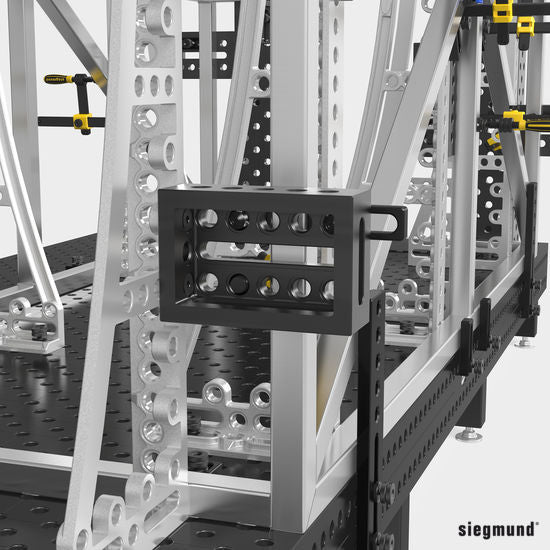

The Siegmund 300x200x100mm Support and Clamping Frame (Left Stop) is used to connect and stabilize fixtures in complex assemblies. It serves as a table extension, support block, or left-hand stop for precision alignment. Shops use it to speed up changeovers, support large welds, and provide flexible positioning with both fixed and adjustable stop configurations.
