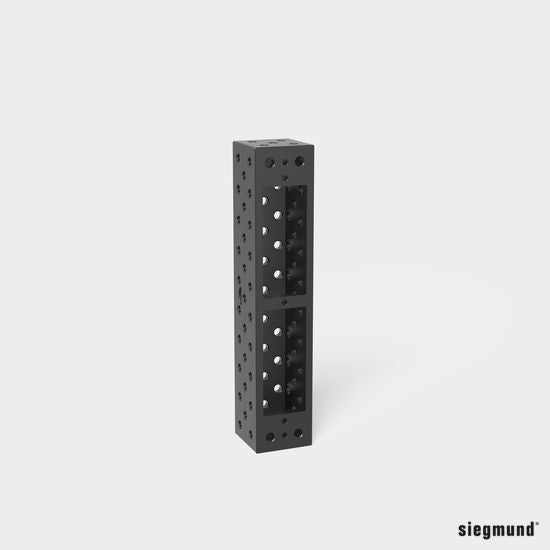

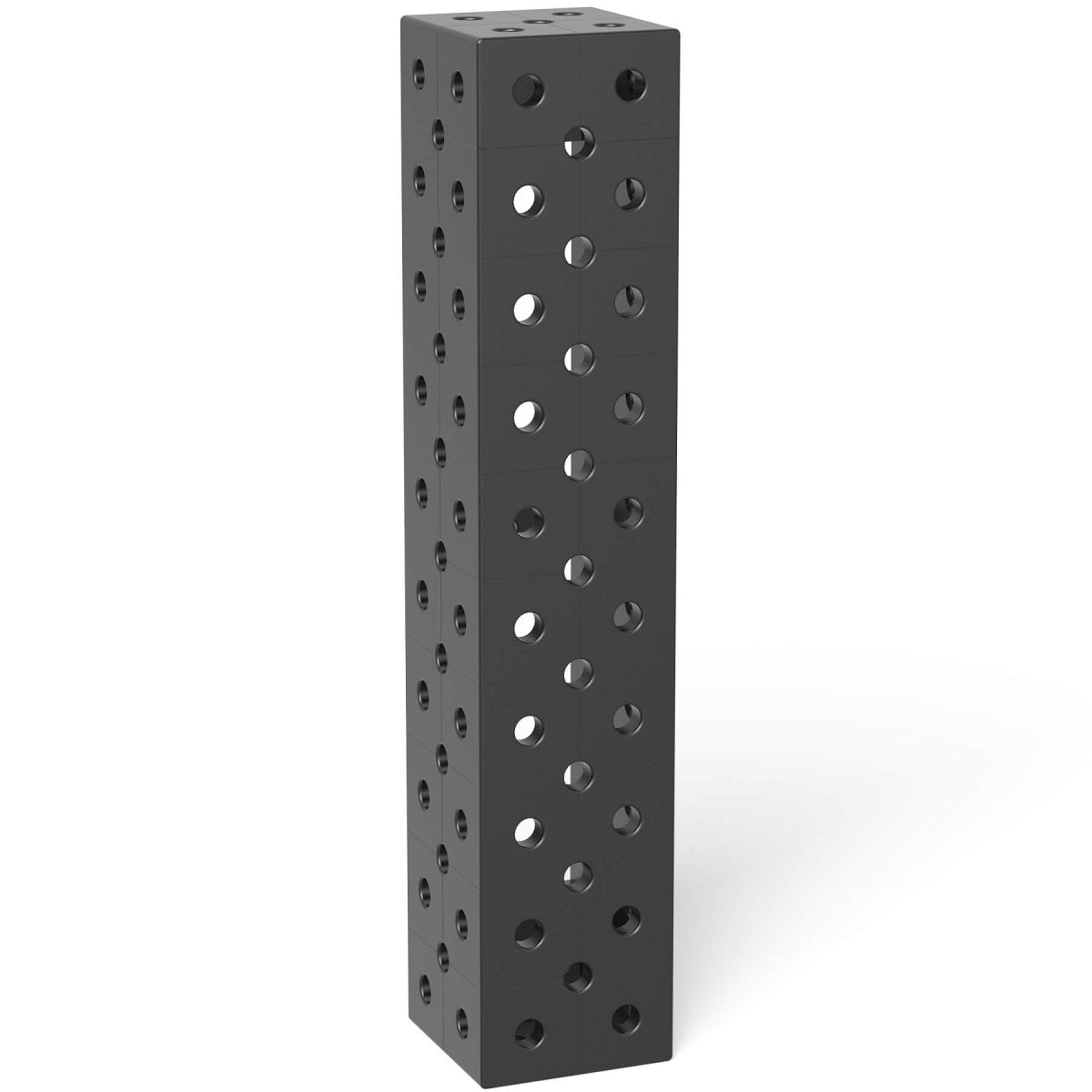

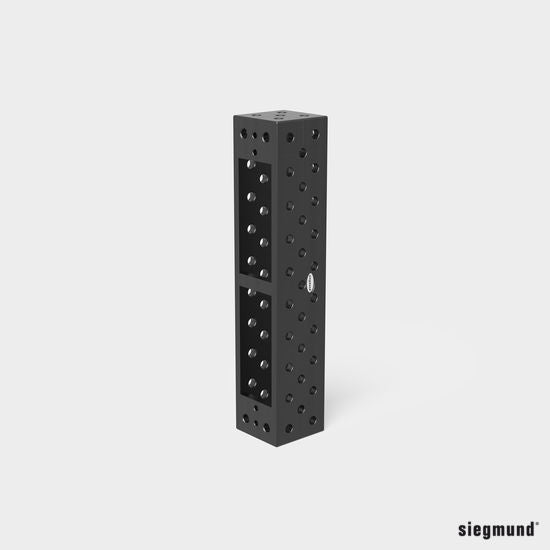

The Siegmund 2-280370.P: 1,000x200x200mm Square U-shape riser block delivers maximum span, stability, and durability for large-scale welding and fixturing applications. Its plasma nitrided finish ensures long-term resistance to wear and spatter, while its robust construction supports precise alignment in extended setups.
- Measures 1,000x200x200mm (39.37"x7.87"x7.87" Inches) for the largest extension capacity.
- Plasma nitrided surface provides superior durability against spatter, wear, and corrosion.
- 25mm (0.98" Inches) wall thickness ensures structural rigidity under heavy load.
- 100mm (3.94" Inches) grid spacing enables repeatable and accurate alignment.
- Five-sided borehole design with optional diagonal holes increases clamping versatility.
- Includes mounting holes for attaching table legs and footplates for track width 900mm.
Key Features:
- Provides the longest extension capacity for Siegmund welding tables.
- Nitrided finish delivers superior surface hardness and extended service life.
- Back mounting holes allow secure attachment of table legs.
- Maintains accuracy with 100mm (3.94" Inches) grid lines.
- Integrates seamlessly with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 1,000mm (39.37" Inches)
- Width: 200mm (7.87" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 264.6 lbs. (120 kg.)
Common Uses:
This riser block delivers maximum reach and structural support for large fabrication projects requiring long extensions or vertical positioning. It provides secure clamping and repeatable alignment for oversized workpieces, ensuring precision and rigidity under demanding conditions. With its nitrided finish and integrated mounting compatibility, it is built for the most intensive shop applications.
