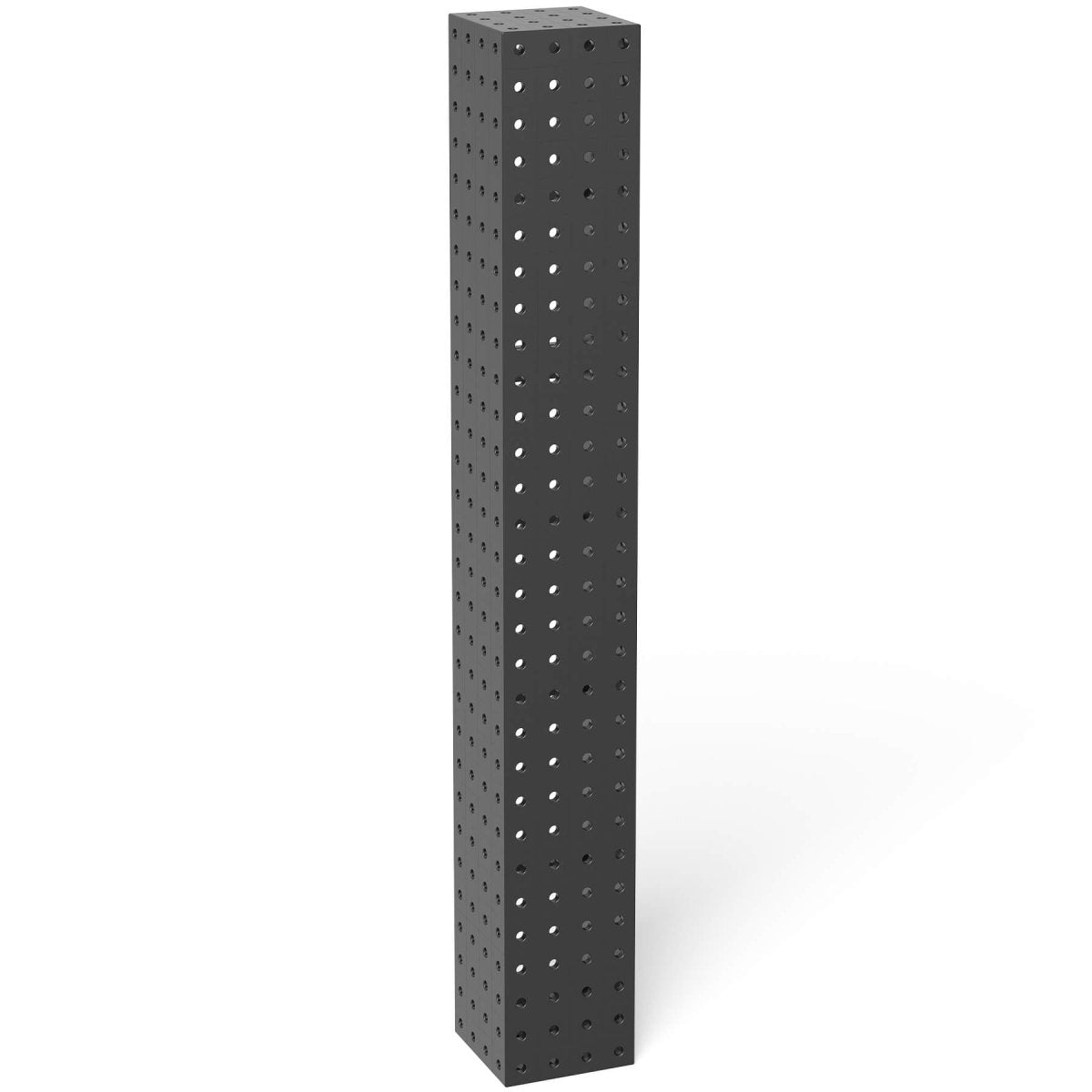

The Siegmund 2-280392.3.P: 3,000x400x400mm Square U-Shape Riser Block delivers maximum stability for oversized assemblies and structural welding applications. Constructed from 25mm (0.98" Inches) plasma-nitrided steel, it provides superior hardness, rigidity, and durability in heavy-duty shop environments.
- It extends welding tables for large-scale workpieces and vertical builds.
- Five-sided boreholes with optional diagonal grid expand clamping options.
- 100mm (3.94" Inches) grid pattern ensures precise orientation and setup.
- Connector bolt mounting guarantees rigid attachment and secure alignment.
- Rear-side holes allow for integration with table legs on extensions beyond 500mm (19.69" Inches).
Key Features:
- Optimized for Siegmund System 28 Metric Series requiring oversized stability.
- Plasma nitriding treatment increases hardness and long-term wear resistance.
- Five-sided boreholes with diagonal grid support flexible clamping setups.
- Extended 3,000mm format handles the largest fabrication and structural assemblies.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 3,000mm (118.11" Inches)
- Width: 400mm (15.75" Inches)
- Height: 400mm (15.75" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 1,698.86 lbs. (770 kg.)
Common Uses:
This Square U-Shape Riser Block provides robust support for extra-large welding assemblies, table extensions, and structural fabrication. Fabricators rely on its plasma-nitrided surface, precision borehole system, and large-format size to secure oversized components with strength, accuracy, and repeatability.
