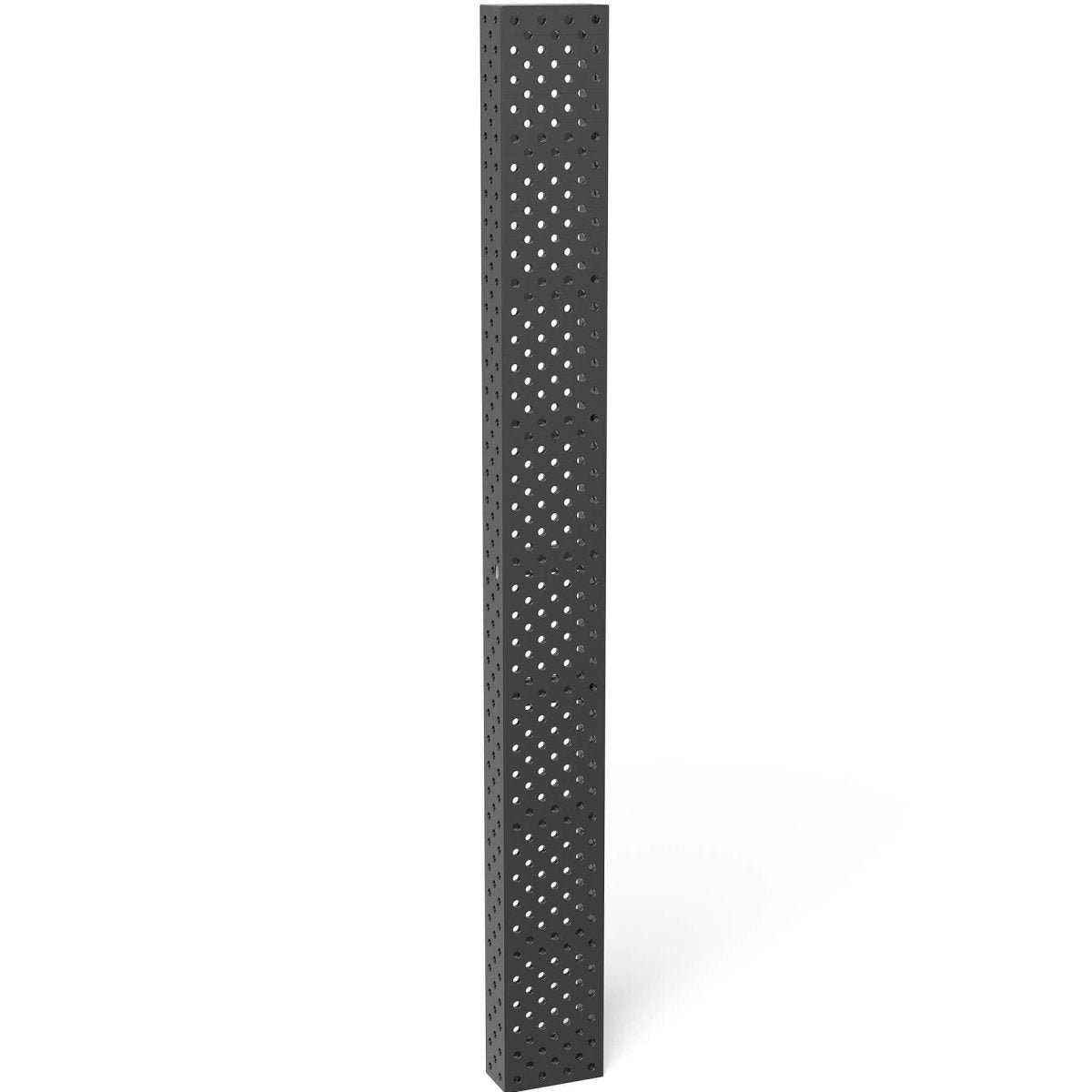

The Siegmund 2-280394.2.P: 4,000x400x200mm Square U-Shape Riser Block delivers stability and precision for large setups and extensions. Built with a plasma-nitrided surface, it resists wear and ensures long service life in demanding welding environments.
- It provides a rigid table extension for vertical builds or linking welding tables.
- Strong 25mm (0.98" Inches) material thickness enhances load capacity and durability.
- Five-sided boreholes with diagonal options expand clamping flexibility.
- Accurate 100mm (3.94" Inches) grid pattern speeds up alignment and setup.
- Mounting holes on the back accept table legs for extensions beyond 500mm (19.69" Inches).
Key Features:
- Delivers a secure and precise extension for Siegmund System 28 Metric Series tables.
- Plasma nitriding treatment increases hardness and surface protection.
- Supports flexible clamping with five-sided boreholes and diagonal hole pattern.
- Large-format design handles heavy-duty fabrication requirements with ease.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 4,000mm (157.48" Inches)
- Width: 400mm (15.75" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 1,413.05 lbs. (641 kg.)
Common Uses:
This Square U-Shape Riser Block provides a rigid extension for welding tables, enabling vertical setups, structural assembly, and stable table-to-table connections. Fabricators rely on its five-sided boreholes and precision grid layout to secure complex parts and fixtures with speed and repeatable accuracy.
