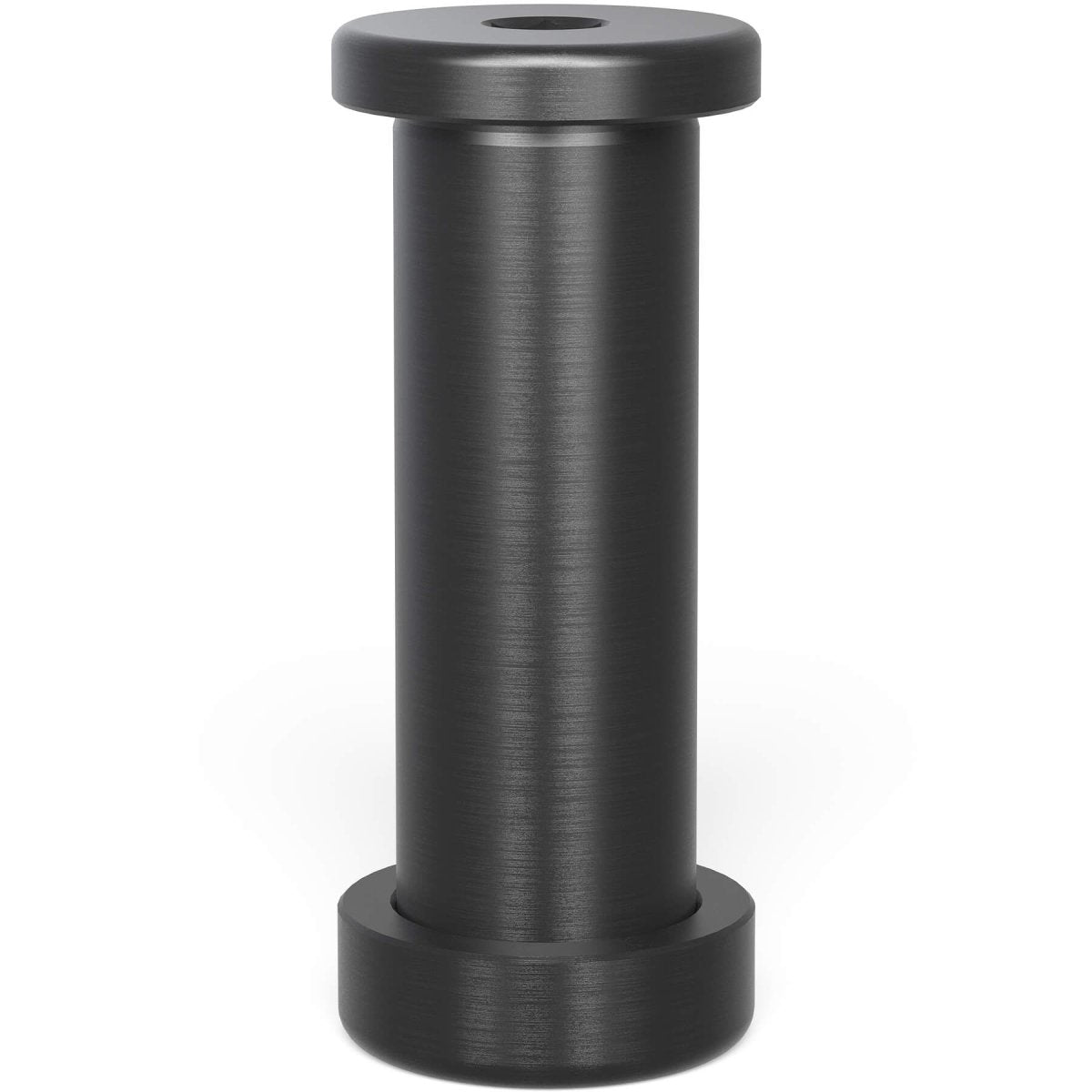

The Connecting Bolt with Collar triple burnished delivers strong, fixed connections for Siegmund System 28 setups. Designed for use with large elements such as tables, U-squares, and aluminum profiles, it provides long-term stability under demanding shop conditions.
- The 95mm (3.74" Inches) length supports clamping of up to three components.
- Triple burnished finish increases durability and resistance to wear.

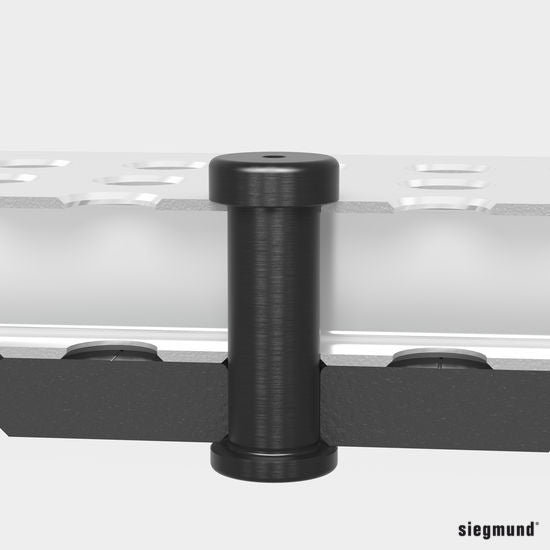

- Collar design ensures secure seating, even in elongated holes.
- Hexagon socket design (top Size 10 / bottom Size 6) enables reliable tightening.
- Provides strong shear and tensile ratings for permanent fastening.
- Suitable for both steel and aluminum with material-specific torque.
Key Features:
- Triple burnished surface ensures extended service life.
- Handles 200 kN (44,961.0 lbf.) shear force.
- Delivers 15 kN (3,372.0 lbf.) tensile force in steel applications.
- Tightening torque: 70 Nm (619.6 lbf·in.) steel, 60 Nm (531.0 lbf·in.) aluminum.
- Compatible with Siegmund System 28 Metric Series for three-component fastening.
Specifications:
- Item No.: 2-280584
- System: Siegmund System 28 Metric Series
- Length: 95mm (3.74" Inches)
- Weight: 1.12 lbs. (0.51 kg.)
- Shearing Force: 200 kN (44,961.0 lbf.)
- Tensile Force Steel: 15 kN (3,372.0 lbf.)
- Tightening Torque Steel: 70 Nm (619.6 lbf·in.)
- Tightening Torque Aluminum: 60 Nm (531.0 lbf·in.)
- Connection Type: Hexagon Socket (Top Size 10 / Bottom Size 6)
Common Uses:

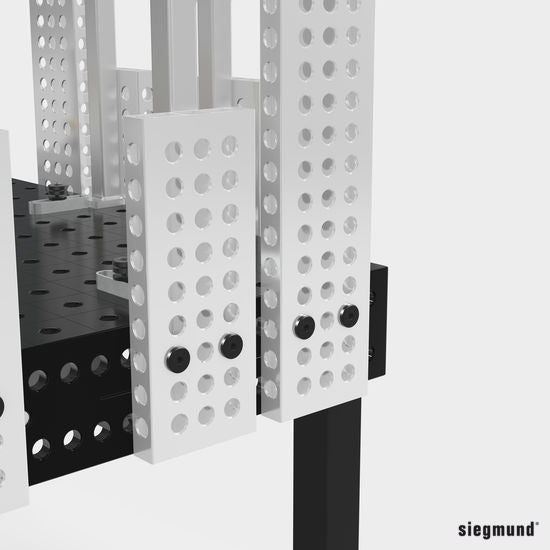

This bolt provides secure, long-term connections for Siegmund System 28 tables, U-squares, and aluminum profiles. Its triple burnished finish withstands heavy shop use, while the collar design offers reliable fastening even in elongated holes. Fabricators depend on it for structural strength, repeatability, and durability in permanent setups.
