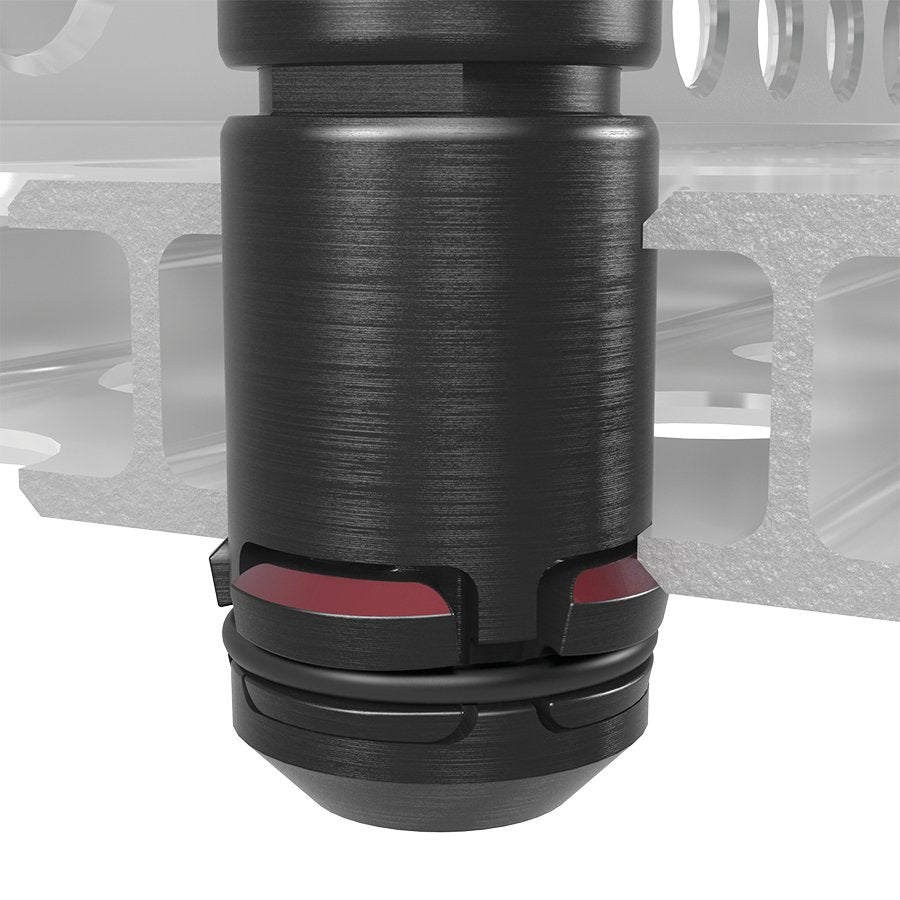

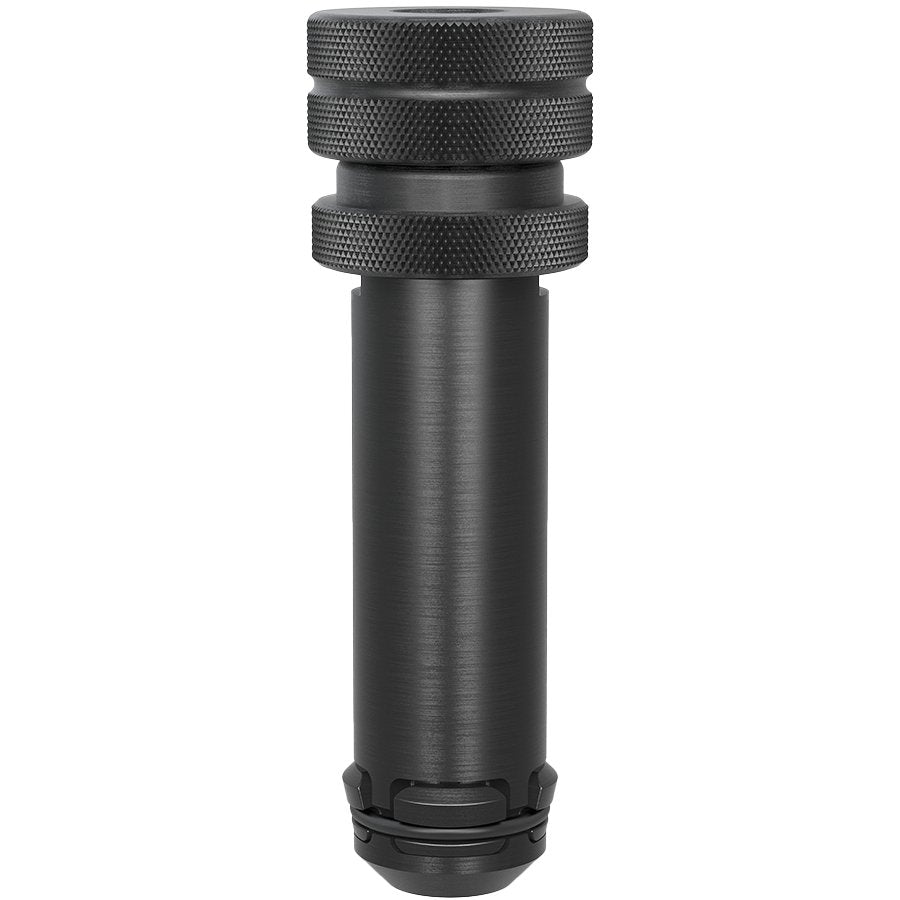

The Areal Clamping Bolt Triple (Burnished) offers secure and durable fastening for Siegmund System 28 Metric Series applications. Built for handling three components at once, it provides excellent shear strength and a smooth, O-ring–free surface that is especially well suited for aluminum profiles.
- Measures 125mm (4.92" Inches) in length with a burnished finish.
- Supports clamping ranges from 72–78mm (2.83"–3.07" Inches).
- High shear force capacity of 200kN (44,961 lbf.) for maximum security.
- Provides tensile strength of 20kN (4,496 lbf.) in steel and 6kN (1,349 lbf.) in aluminum.
- Hexagon socket (Size 14) allows quick, controlled fastening.
- Weighs only 1.50 lbs. (0.68 kg.) for efficient handling.
Key Features:
- Supports clamping of three components simultaneously.
- Delivers high strength with burnished durability.

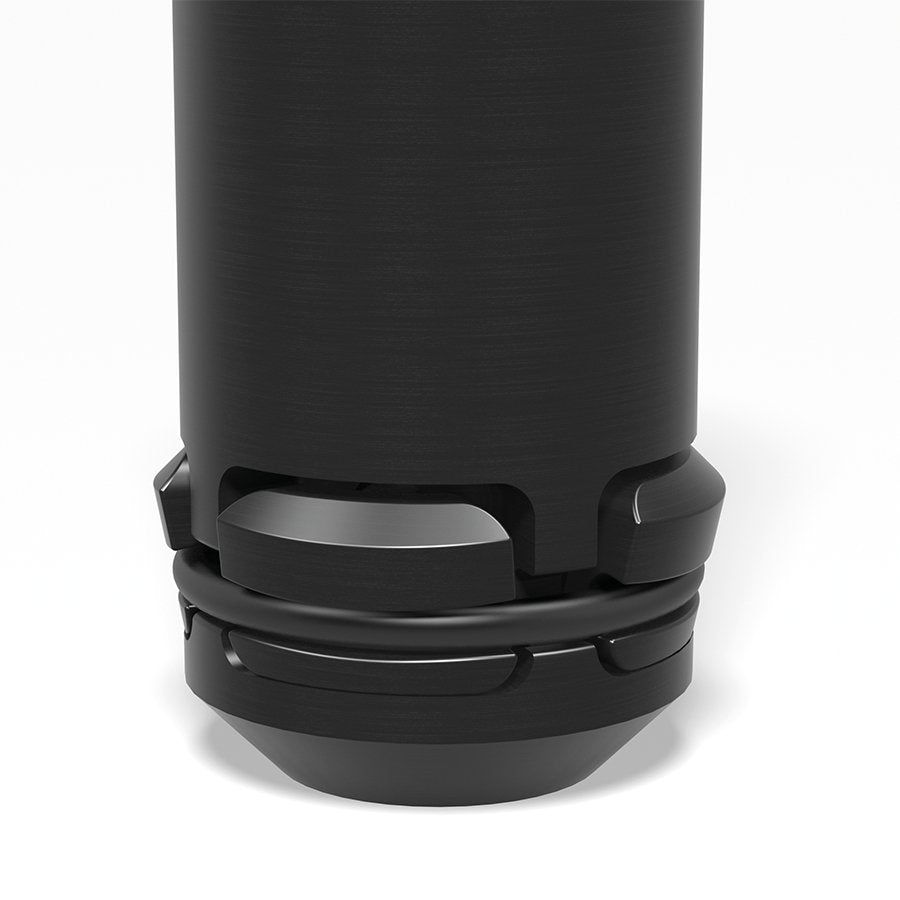

- Smooth surface prevents damage to aluminum profiles.
- Designed for precise fastening in Siegmund System 28 Metric setups.
- Reliable choice for professional welding and fabrication.
Specifications:
- Series: Siegmund System 28 Metric Series
- Item No.: 2-280590.3
- Length: 125mm (4.92" Inches)
- Weight: 1.50 lbs. (0.68 kg.)
- Clamping Range: 72–78mm (2.83"–3.07" Inches)
- Shearing Force: 200kN (44,961 lbf.)
- Tightening Torque Steel: 50Nm
- Tightening Torque Aluminum: 20Nm
- Tensile Force Steel: 20kN (4,496 lbf.)
- Tensile Force Aluminum: 6kN (1,349 lbf.)
Common Uses:

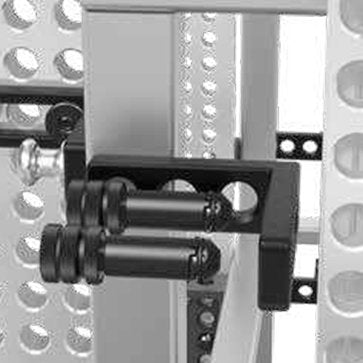

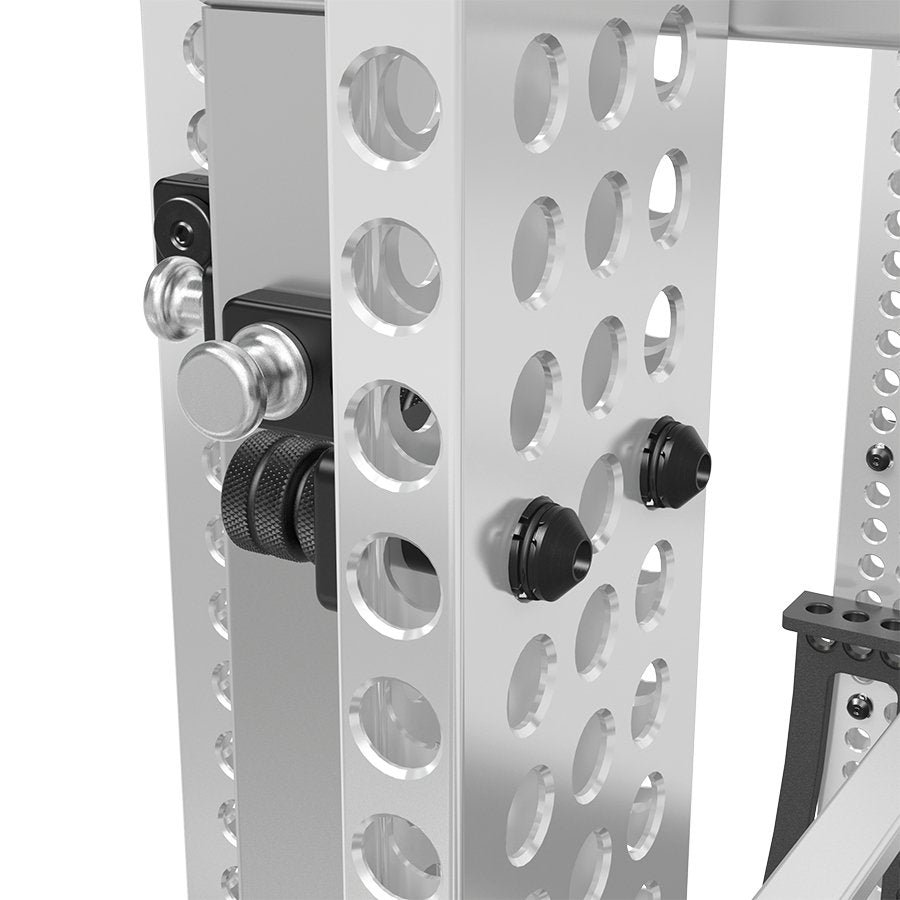

This clamping bolt is used to secure three components simultaneously in heavy-duty Siegmund System 28 assemblies. It is especially effective for setups involving aluminum profiles where smooth, high-strength fastening is required without surface damage. Fabricators rely on it for secure, repeatable precision in welding and fixture construction.
