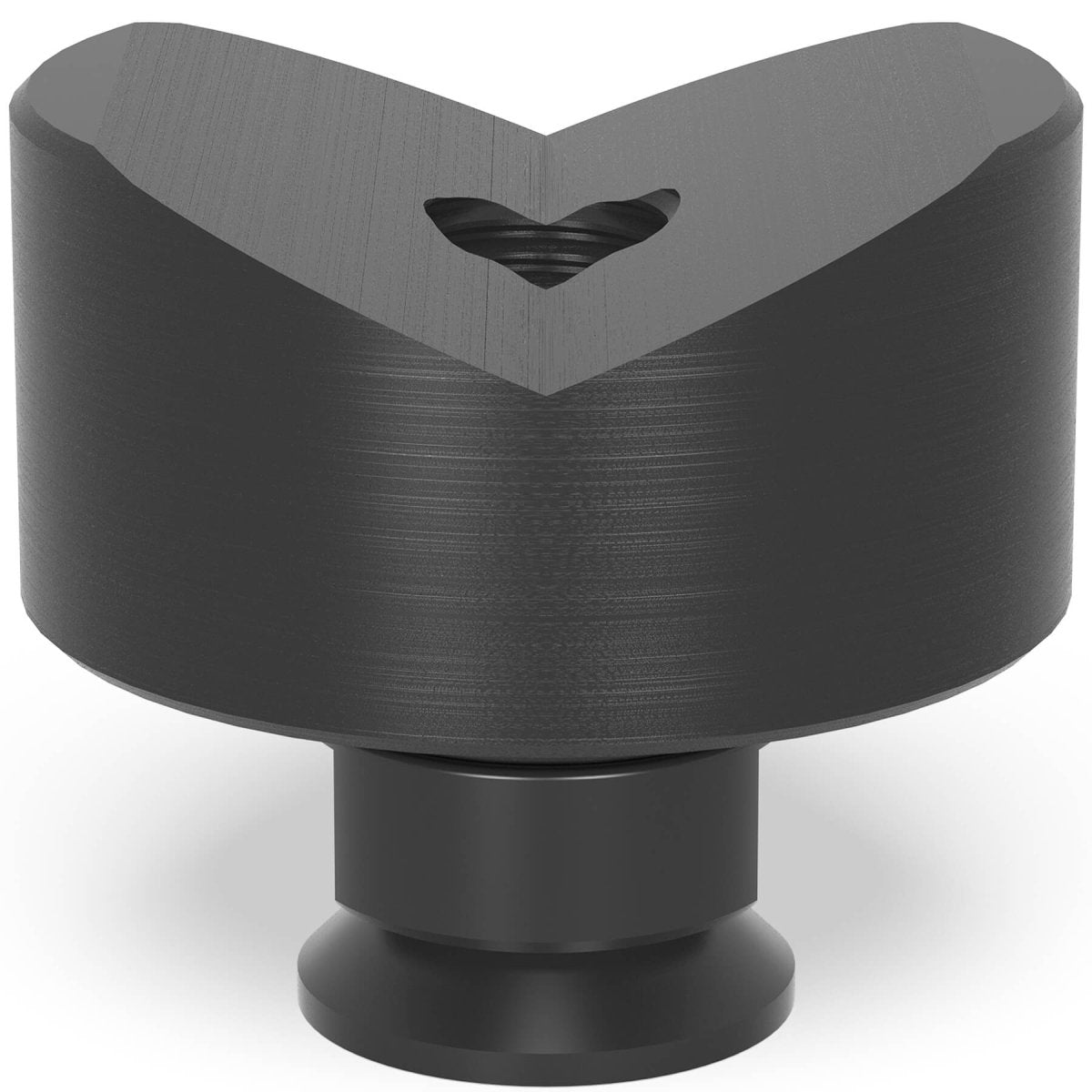

The 2-280651.1.N Prism Ø60 135° with screwed-in collar delivers secure and precise pipe clamping for Siegmund System 28 setups. Its nitrided steel construction ensures strength and wear resistance, while the 135° geometry provides a stable support surface for pipes up to 80mm (3.15" Inches) in diameter.
- The 60mm (2.36" Inches) diameter base ensures strong, reliable support.
- Its 30mm (1.18" Inches) height allows stable and compact positioning.
- Weighing 1.15 lbs. (0.52 kg.), it combines durability with easy handling.
- The 135° angle provides secure support for pipe clamping.
- M16 screwed-in collar allows fixed or repositioning.
- Working height can be adjusted using prism extensions for added flexibility.
Key Features:
- Nitrided steel finish enhances durability and wear resistance.
- 135° geometry provides reliable pipe clamping up to 80mm diameter.
- M16 threaded collar allows flexible and secure positioning.
- Fully compatible with Siegmund System 28 boreholes and clamps.
Specifications:
- Item No.: 2-280651.1.N
- System: Siegmund System 28 Metric Series
- Height: 30mm (1.18" Inches)
- Diameter: 60mm (2.36" Inches)
- Weight: 1.15 lbs. (0.52 kg.)
- Material: Nitrided Steel
- Thread: M16 (compatible with prism extensions, e.g., Item No. 280649)
Common Uses:

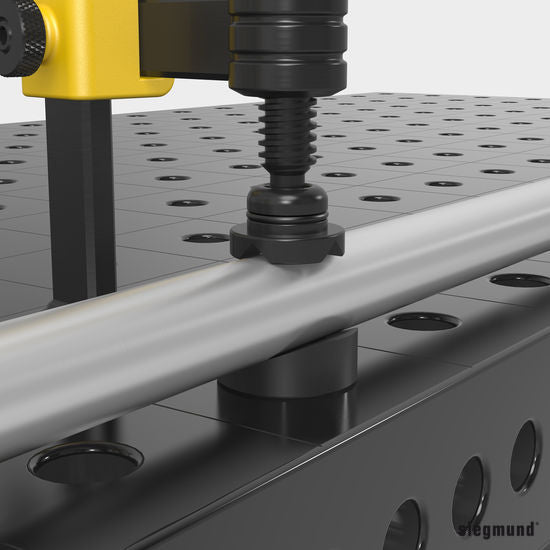

The 2-280651.1.N Prism Ø60 135° is used to clamp and support pipes in welding and fabrication tasks. Its nitrided steel finish ensures durability under demanding shop conditions, while its M16 screwed-in collar provides secure positioning and adjustable height options in Siegmund System 28 setups.
