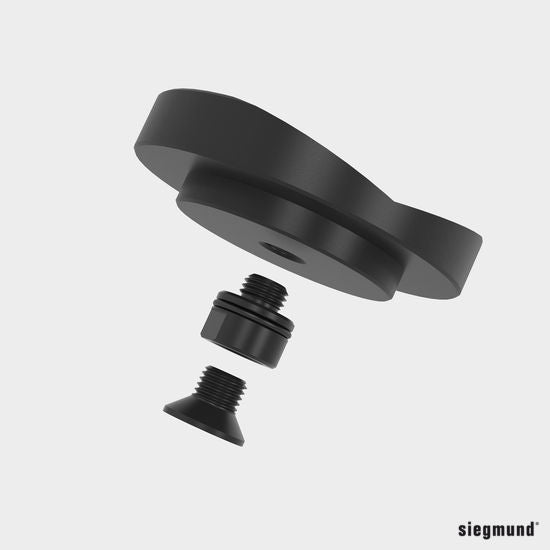

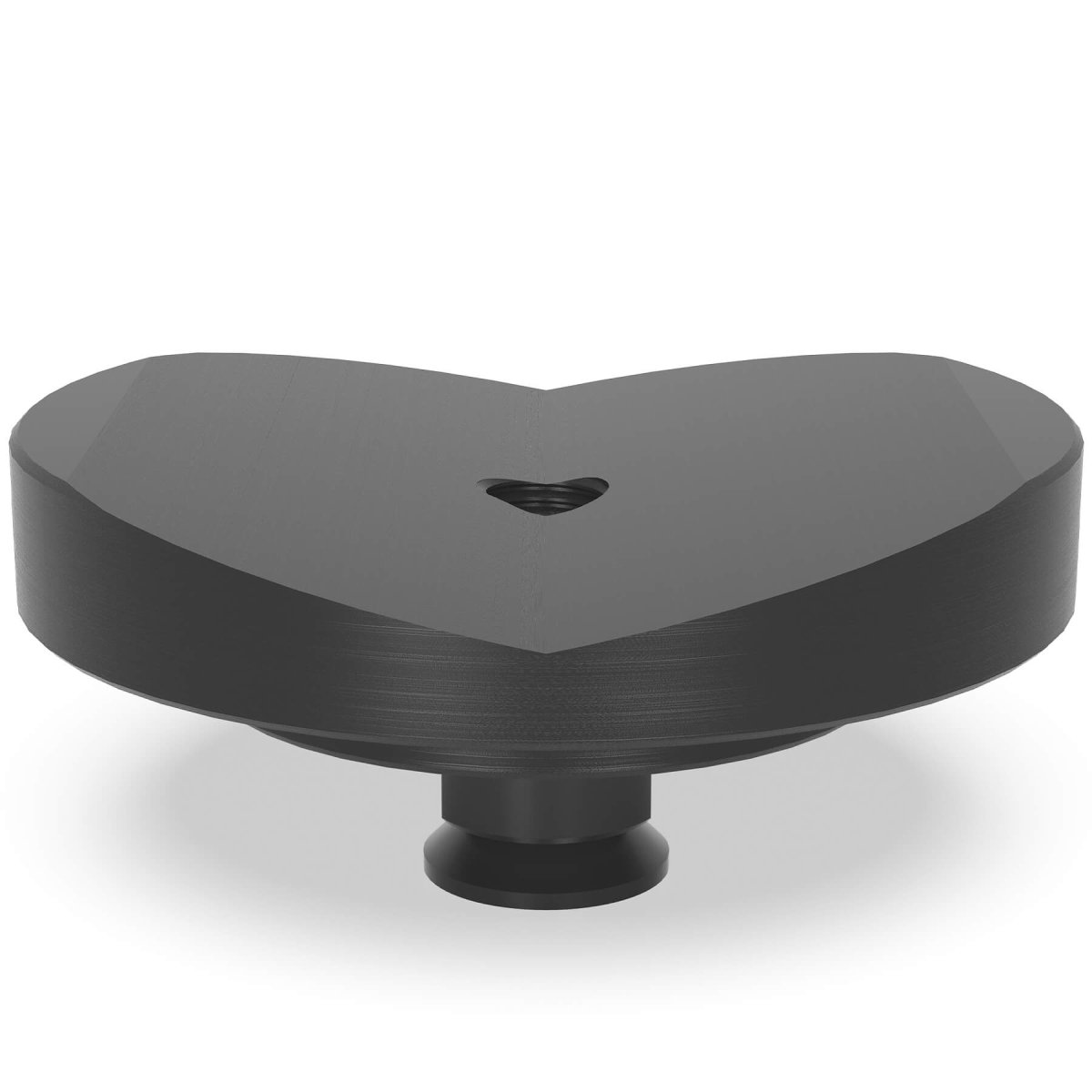

The 2-280652.1 Prism Ø120 157° with screwed-in collar is engineered for clamping and supporting extra-large pipes in Siegmund System 28 setups. With a massive 120mm (4.72" Inches) diameter and a 157° angle, it provides a stable support surface for pipes up to 400mm (15.75" Inches) in diameter. Its burnished steel construction ensures durability and long service life in demanding welding environments.
- The 120mm (4.72" Inches) diameter delivers exceptional surface stability.
- Its 30mm (1.18" Inches) height ensures reliable alignment.
- Heavy-duty weight of 3.74 lbs. (1.7 kg.) provides robust stability.
- 157° geometry supports large pipes and round profiles securely.
- Burnished finish prevents premature wear and increases durability.
- The M16 screwed-in collar allows secure mounting and easy repositioning.
- Height adjustment possible with prism extensions.
Key Features:
- Burnished steel construction provides strength and long life.
- 157° geometry offers a wide, solid support surface.
- Handles pipes up to 400mm (15.75" Inches) in diameter.
- Fully compatible with Siegmund System 28 boreholes and extensions.
Specifications:
- Item No.: 2-280652.1
- System: Siegmund System 28 Metric Series
- Height: 30mm (1.18" Inches)
- Diameter: 120mm (4.72" Inches)
- Weight: 3.74 lbs. (1.7 kg.)
- Material: Burnished Steel
- Thread: M16 (compatible with prism extensions, e.g., Item No. 280649)
Common Uses:

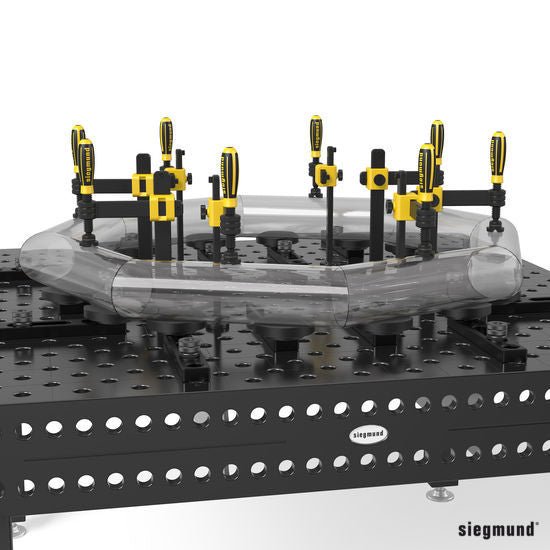

The 2-280652.1 Prism Ø120 157° is used in fabrication setups requiring secure clamping of large pipes up to 400mm (15.75" Inches) in diameter. Its burnished steel construction ensures durability in heavy-duty welding applications, making it ideal for large-scale industrial use.
