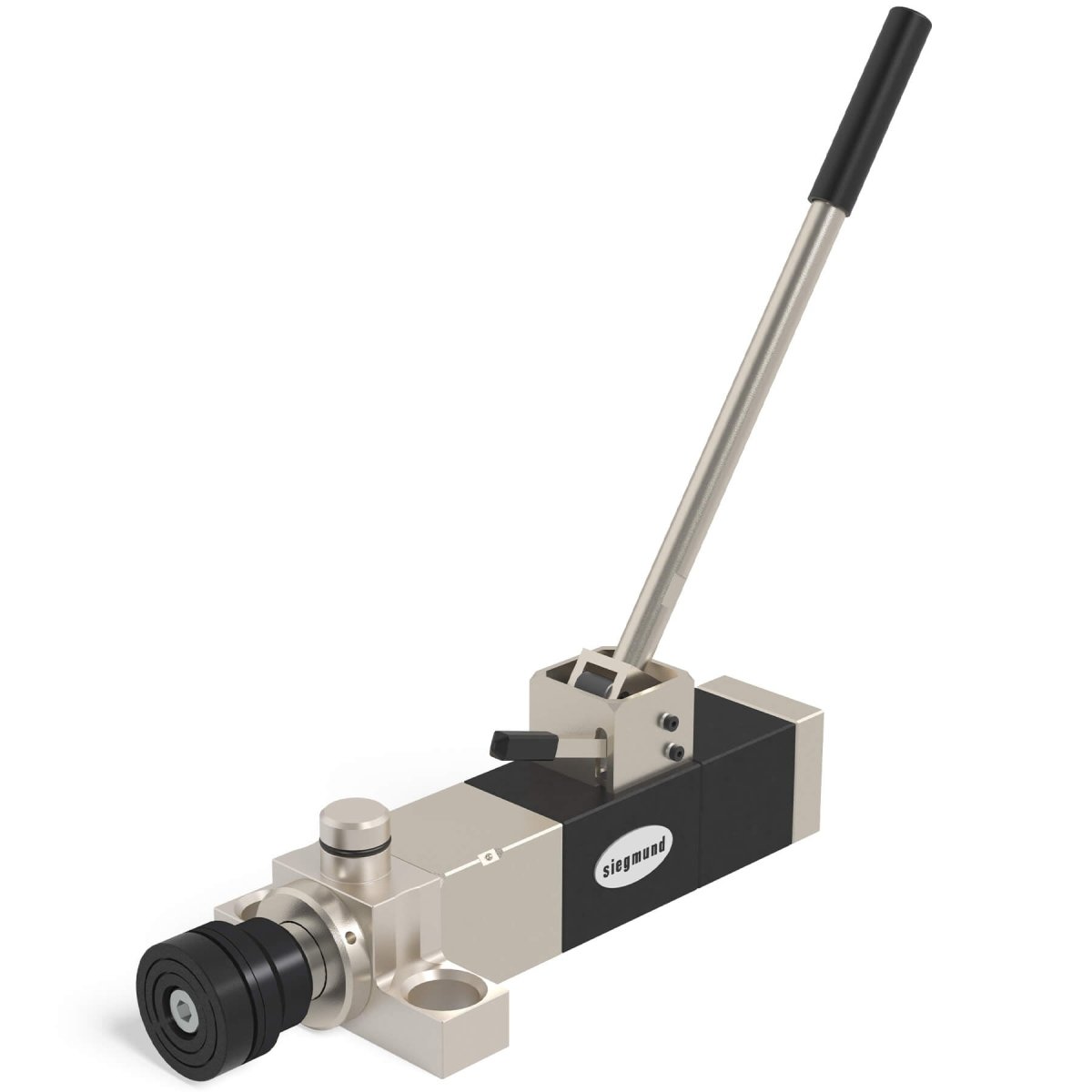

Table Press for Clamping and Straightening - System 28 Metric Series Welding Tables
(Item No. 2-280780).
Table Press Specs and Features:
- Weight: 14.78 lbs.
‐ For Clamping and Straightening
‐ Compressive Force of 2.5 tons (5,512 lbs)
‐ Total Stroke 60mm (2-3/8")
‐ Operating Force 330 N (75 lbf)
‐ Fixation Always Required in Two Places
- Although this Table Press is for the System 28 Series Metric Welding Tables, it will also work for the System 22 Series Welding Tables, however, you will need 2 a quantity of x2 of 2-002822 Bolts in order for this to work properly.
