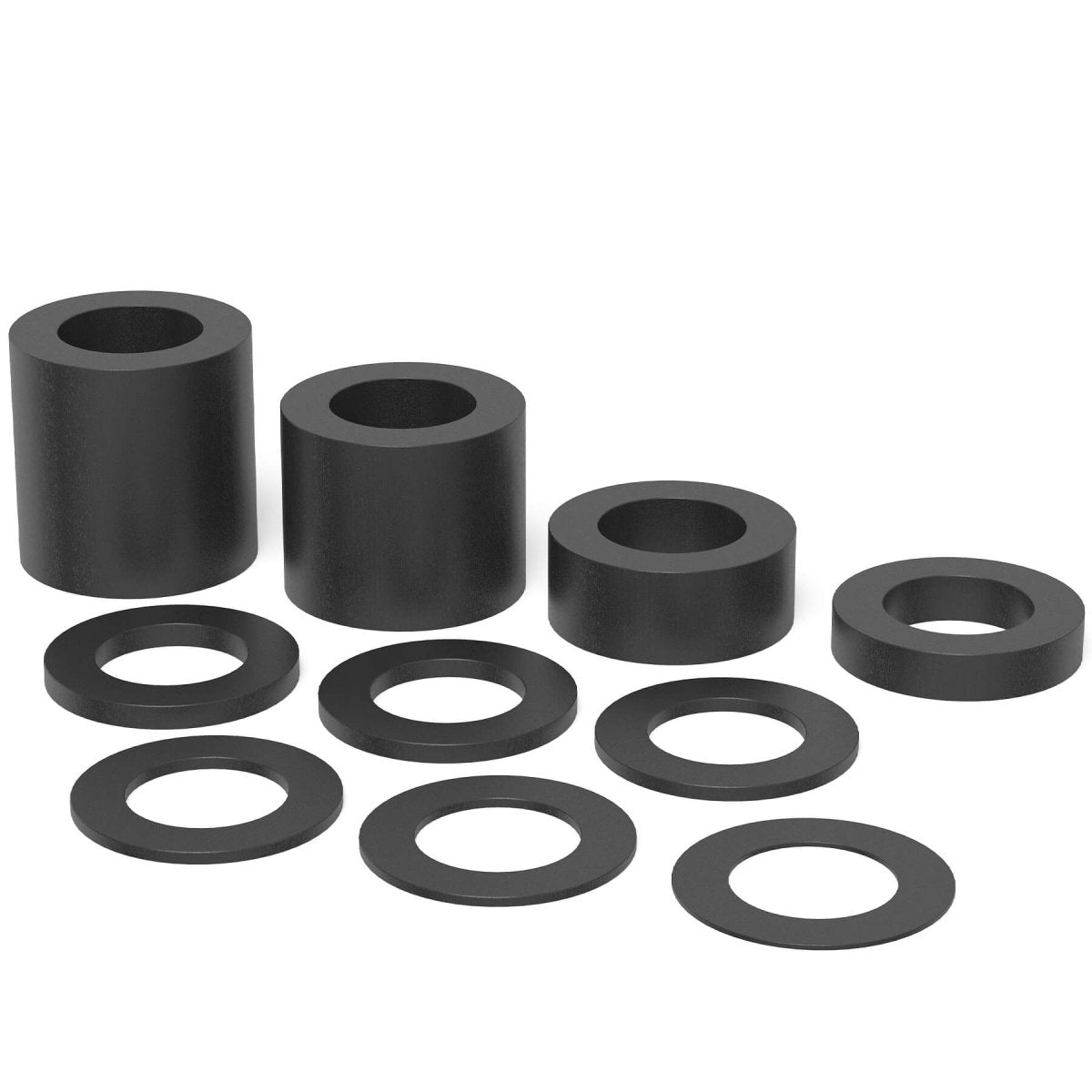

The Siegmund washer set provides precise height compensation for fixture setups, enabling accurate adjustments from 1mm to 50mm. With multiple disc sizes included, this set ensures reliable alignment and repeatability in welding and fabrication tasks. Built from burnished steel, the washers deliver long-term durability and stability in professional shop environments.
- It includes washers graded in 1–50mm sizes for flexible adjustment.
- Burnished steel construction ensures durability and wear resistance.
- Ø50mm diameter provides a stable and secure seating surface.
- Supports both small and large compensations for fixture height.
- Designed for compatibility with Siegmund System 28 Metric Series.
Key Features:
- Provides height compensation in fine increments for precision setups.
- Durable burnished steel ensures reliable, long-term use.
- Includes multiple washer sizes to cover a wide adjustment range.
- Integrates with System 28 fixtures for repeatable setups.
Specifications:
- System: Siegmund System 28 Metric Series
- Diameter: 50mm (1.97" Inches)
- Weight: 2.98 lbs. (1.35 kg.)
- Material: Burnished Steel
- Disc Sizes: 1 / 2 / 3 / 4 / 5mm; 10 / 20 / 40 / 50mm; 1/10" (2.54mm)
Common Uses:

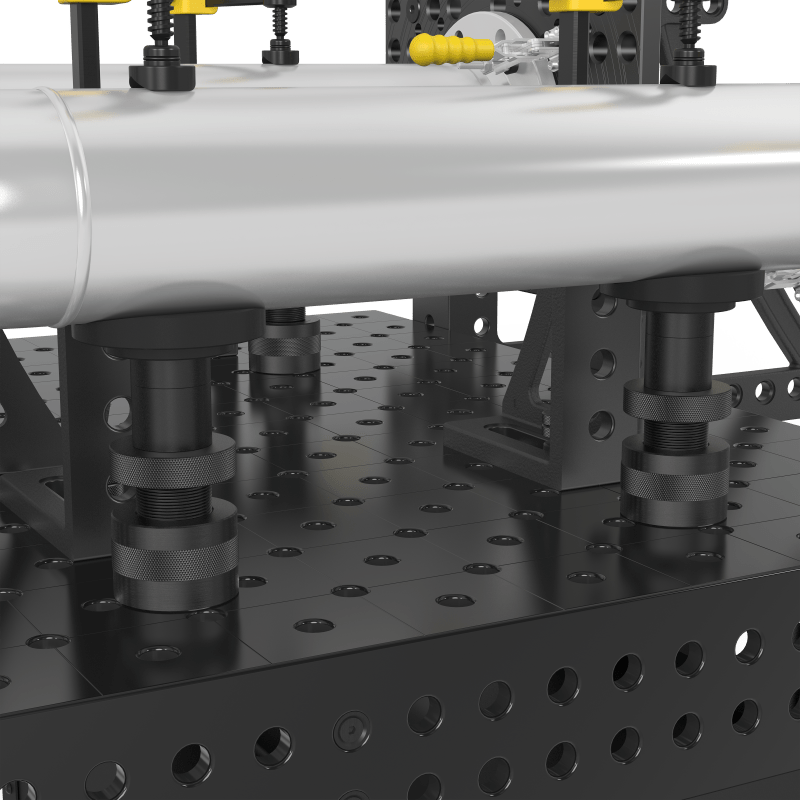

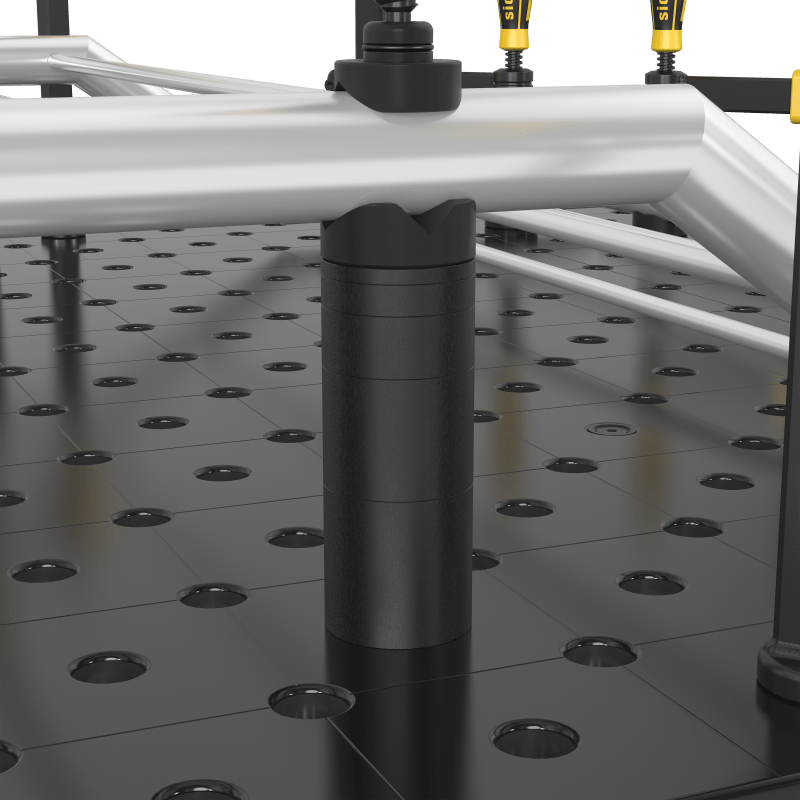

This washer set is used to fine-tune fixture height during welding and assembly, providing both small and large compensations for precise alignment. Fabricators rely on it for repeatable adjustments, ensuring accuracy in setups across System 28 applications.
