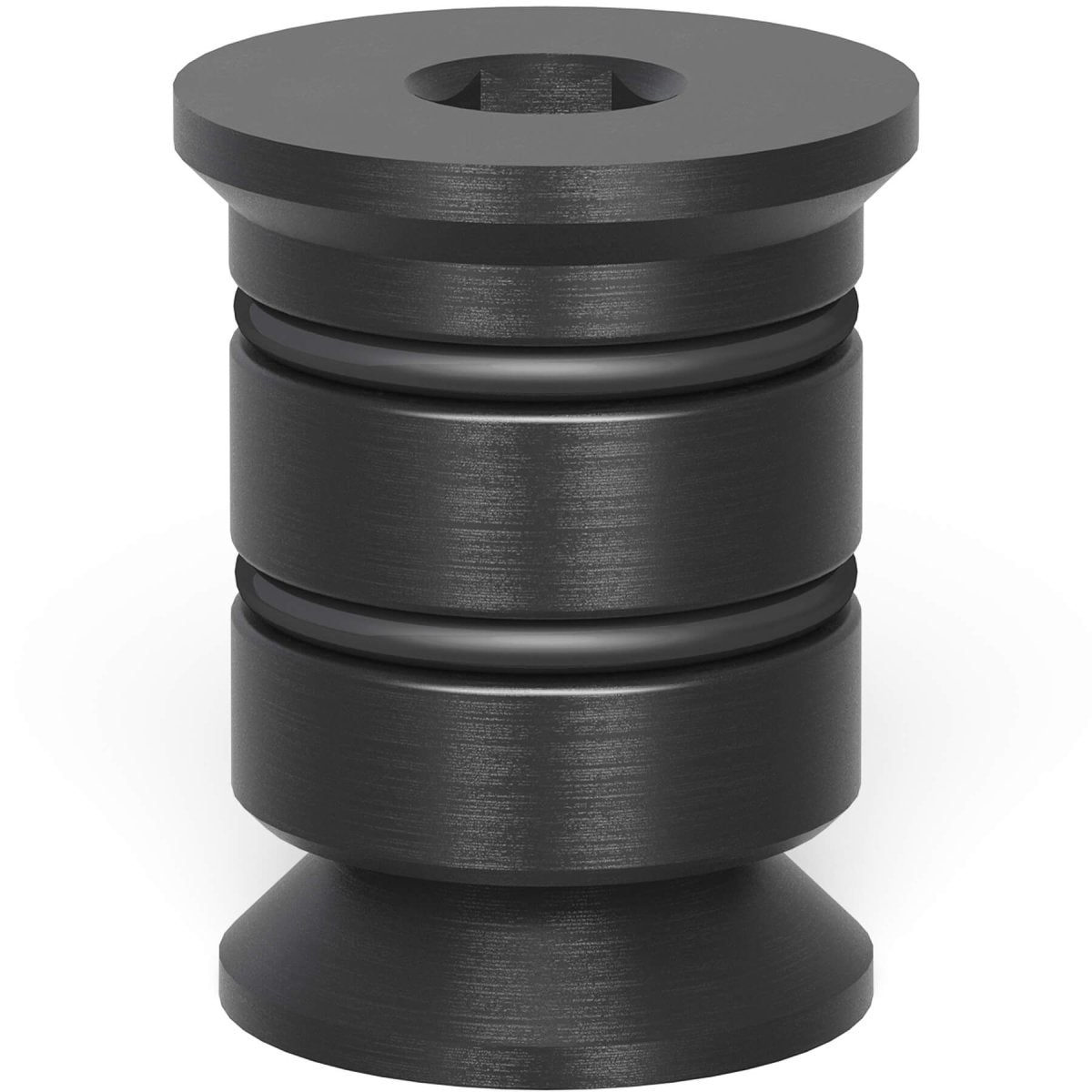

The Siegmund Light Connecting Bolt, designed to connect Siegmund tables and components (Material thickness 25 mm) with Siegmund Premium Light components (Material thickness 15 mm) using the system boreholes.
The Premium Light U-squares can be fastened to the table with the help of connecting bolts (Item No. 800562).
Specs and Features:
- Item No. 2-800562
- With Hexagon Socket (At The Top / At The Bottom Size 10)
- Length: 40mm (1.57'')
- Diameter: 28mm (1.10'')
- Shearing Force: 200kN
- Tightening Torque Steel: 25Nm
- Tensile Force: 10kN
- Weight: 0.33 Ibs. (0.15kg)
