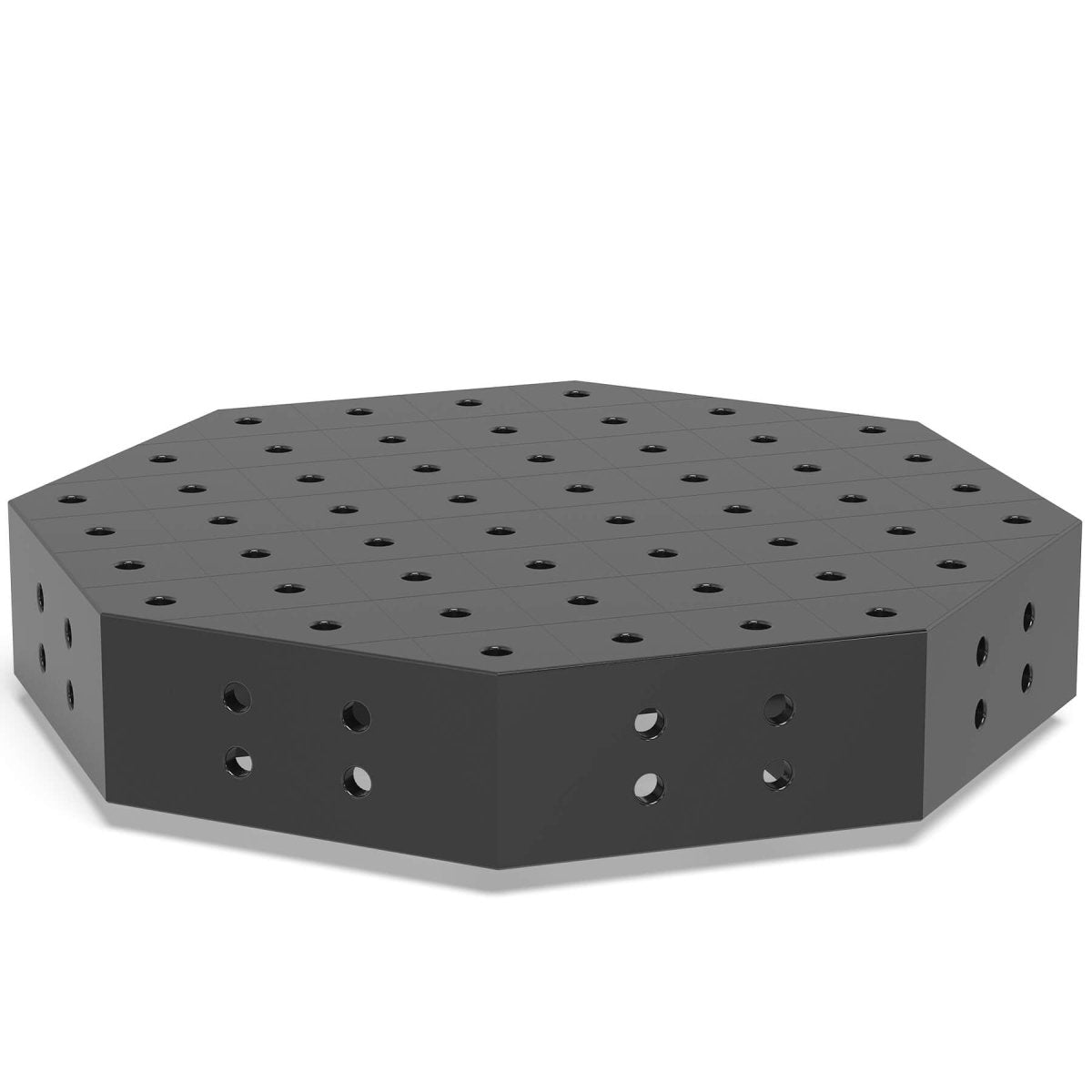

The Siegmund Octagonal Table SW 800x150mm Plasma Nitrided is engineered for precision automation and robotic applications, providing a compact yet robust fixturing surface with full Siegmund System 22 compatibility. Its octagonal design allows optimal access for manipulators and robot cells while maintaining the high load capacity, accuracy, and plasma-nitrided durability expected from Siegmund.
- Constructed from S355J2+N steel for maximum rigidity and precision.
- Plasma-nitrided surface provides excellent hardness and corrosion resistance.
- Features a parallel hole grid identical to Siegmund System 22 tables.
- Ideal for robotic cells, automated welding, and precision positioning.
- Custom adapter plates available for integration with positioners or rotary tables.
- Footplates and adapters are optional and sold separately.
Key Features:
- Hardened plasma-nitrided surface for exceptional wear and rust protection.
- Octagonal geometry provides superior reach and accessibility for robotic arms.
- Fully compatible with Siegmund System 22 clamping and fixturing components.
- 18mm (0.71" Inches) thick top plate ensures stability under heavy loads.
- Supports integration with scales, grids, or adapter plates for automation.
Specifications:
- System: Siegmund System 22 Metric Series
- Length: 331mm (13.03" Inches)
- Width: 800mm (31.50" Inches)
- Height: 150mm (5.91" Inches)
- Diameter: 866mm (34.09" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Weight: 462.97 lbs. (210 kg.)
- Material: S355J2+N Steel (Plasma Nitrided)
- Included Components: Table Body Only (adapter plates optional)
Common Uses:
The Octagonal Table SW 800x150mm provides a precision foundation for automated welding and robotic manipulation systems. Its System 22 grid layout allows for flexible clamping and repeatable positioning, making it ideal for robotic work cells, production fixtures, and prototype fabrication setups where compact precision and strength are vital.
