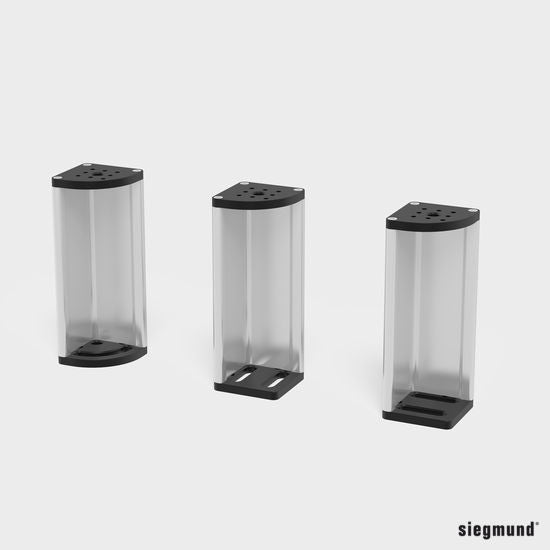

2-CS000172.8: 251mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

Manufacturer: Siegmund
Part No. (SKU): 2-CS000172.8
Current Availability in the USA: Out Of Stock
Series: 16mm Welding Table Accessories
$35
$50
$35
Subtotal: $35
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders will ship out within 1 to 3 Business Days

2-CS000172.8: 251mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

Manufacturer: Siegmund

2-CS000172.8: 251mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

$50 $35

Manufacturer: Siegmund

2-CS000172.8: 251mm 100 T-Slot Aluminum Profile For Siegmund Welding Tables

$50 $35

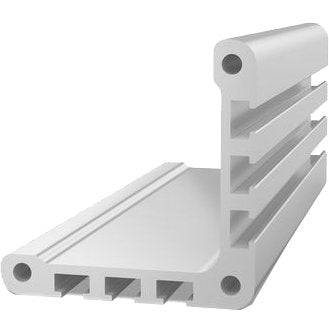

Specs and Features:
- 3 T-slots On Each Side
- For M8 Square Nuts
- Distance Of T-Slots 20 mm
- For Connecting Base And Cover Plate
- Length: 251mm (9.88")
- Width: 100mm (3.94")
- Height: 100mm (3.94")
- Weight: 2.43 Ibs (1.1kg)

1. Define the Height of the Square

  • Cut the aluminum profile to the required length.
  • Note the minimum height of the cut.
  • Ensure cut edges are square.
  • Deburr the profile after sawing.

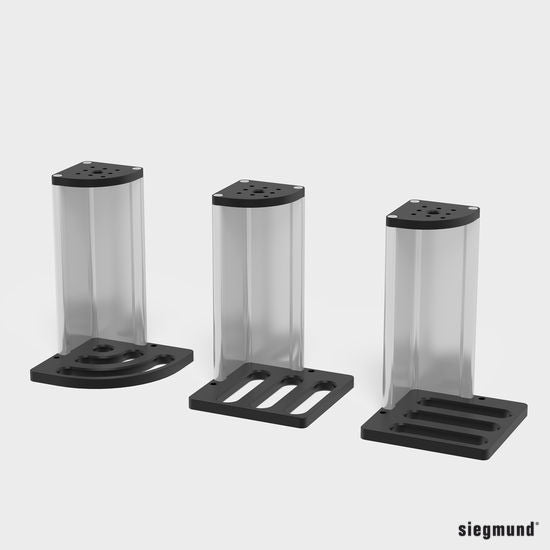

2. Fasten the Base Plate

  • Fasten aluminum profile using self tapping screws.
  • When the screws are screwed in, a thread is created in the profile.
  • Thread cutting is not required with self tapping screws.
  • Maximum torque: 20 Nm

3. Insert Square Nuts

  • Insert square nuts in the T-Slot of the aluminum profiles.
  • For fastening customer-side templates (material thickness 5 – 6 mm) or optionally also lateral fastening of quick-change clamps with M8x12 screws.

4. Fasten the Cover Plate

  • Fasten aluminum profile using self tapping screws.
  • When the screws are screwed in, a thread is created in the profile.
  • Thread cutting is not required with self tapping screws.
  • Maximum torque: 20 Nm

5. Mount Accessories

  • Mount the quick-change clamp directly on the cover plate.
  • The quick-change clamp can also be attached using an adapter.

6. Clamp the Device

  • Attachment to perforated plate, welding table or slot table with fast clamping bolts.
  • If required, use a M8x12 screw to fasten the customized template to a square nut.
