Specs and Features:
- Item No. 2-CS009084
- Without Adapter
- Hole Pattern: 40x40
- Opening Angle: 105°
- Length: 151mm (5.94")
- Width: 58mm (2.28")
- Height: 220mm (8.66")
- Max. Holding Force: 2.2 kN
- Weight: 1.54 lbs. (0.7kg)

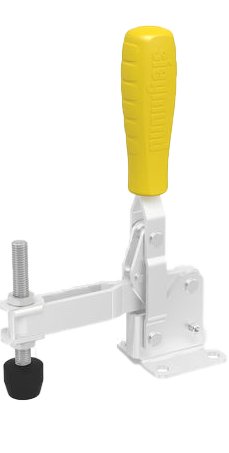

2-CS009084: Vertical Clamp 2200
1. Define the Height of the Square
- Cut the aluminum profile to the required length.
- Note the minimum height of the cut.
- Ensure cut edges are square.
- Deburr the profile after sawing.
2. Fasten the Base Plate
- Fasten aluminum profile using self tapping screws.
- When the screws are screwed in, a thread is created in the profile.
- Thread cutting is not required with self tapping screws.
- Maximum torque: 20 Nm
3. Insert Square Nuts
- Insert square nuts in the T-Slot of the aluminum profiles.
- For fastening customer-side templates (material thickness 5 – 6 mm) or optionally also lateral fastening of quick-change clamps with M8x12 screws.
4. Fasten the Cover Plate
- Fasten aluminum profile using self tapping screws.
- When the screws are screwed in, a thread is created in the profile.
- Thread cutting is not required with self tapping screws.
- Maximum torque: 20 Nm
5. Mount Accessories
- Mount the quick-change clamp directly on the cover plate.
- The quick-change clamp can also be attached using an adapter.
6. Clamp the Device
- Attachment to perforated plate, welding table or slot table with fast clamping bolts.
- If required, use a M8x12 screw to fasten the customized template to a square nut.
