4-220030.XD7PL: Siegmund System 22 2,400x1,200mm Extreme 8.7 Plus Welding Table

Manufacturer: Siegmund
SKU: 4-220030.XD7PL + (x6) 2-220853.X
Availability: Out Of Stock
Product type: System 22 Welding Tables
$9,808 $6,677
$9,808
$6,677
Table Legs: 6 Standard Legs
Subtotal: $6,677
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Earn [points_amount] when you buy this item.

4 - 220030.XD7PL: Siegmund System 22 2,400x1,200mm Extreme 8.7 Plus Welding Table - System 22 Welding Tables by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World

4-220030.XD7PL: Siegmund System 22 2,400x1,200mm Extreme 8.7 Plus Welding Table

$9,808 $6,677

4-220030.XD7PL: Siegmund System 22 2,400x1,200mm Extreme 8.7 Plus Welding Table

$9,808 $6,677
Table Legs: 6 Standard Legs

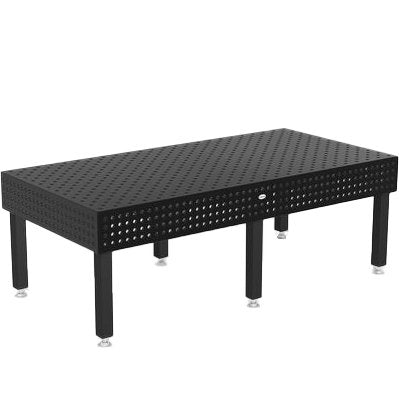

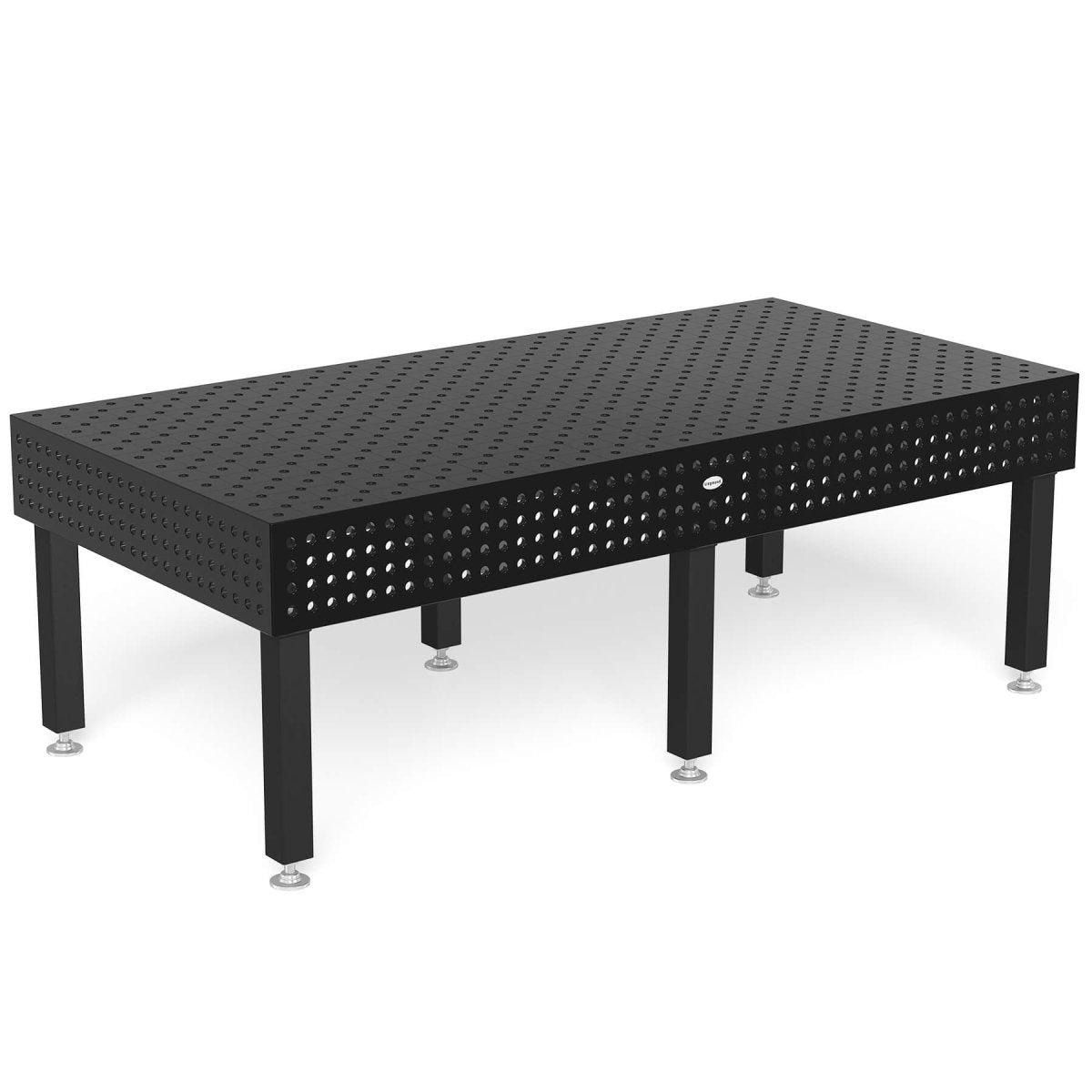

(Image is of a Siegmund System 22 Professional Welding Table. These items are not included. This is being shown as an example.)


The All-New System 22 Welding Table Series are more stable than the System 16 Series & More Cost-Effective than the System 28 Series Welding Tables.


All System 22 Siegmund Welding Tables feature the latest upgrades in aesthetics, versatility, and durability.




Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.

The hardened X7 steel, specially made for Siegmund, has a considerably higher basic hardness as the previously used fine-grained S355J2+N (St 52/3).

The top plate achieves a hardness of about 750 vickers after the plasma nitration and the BAR-Treatment. The higher basic hardness maintains the flatness much better than the previously used steel.




Specs and Features

of the System 22, Professional 8.7 PLUS Series Welding Tables

Specs & Features
of the System 22, 8.7 PLUS Series Welding Tables



Welding Table Specs and Features:

  • Overall Tabletop Size: 2,400x1,200mm
  • Borehole Diameter Size: Ø 22mm (0.86")
  • Welding Table Series: Professional 8.7 PLUS Series
  • Welding Table Material Thickness: Approx. 17 – 19mm (0.66" - 0.75")
  • Welding Table Material Type and Finish: This Welding Table is manufactured of high quality S355J2+N Tool Steel, Plasma Nitrided and BAR-Coated.
  • Official Siegmund Welding Table Part No.: 4-220030.XD7PL
  • Maximum Weight Load: 11,329 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 1,871 lbs. / 849 kg.

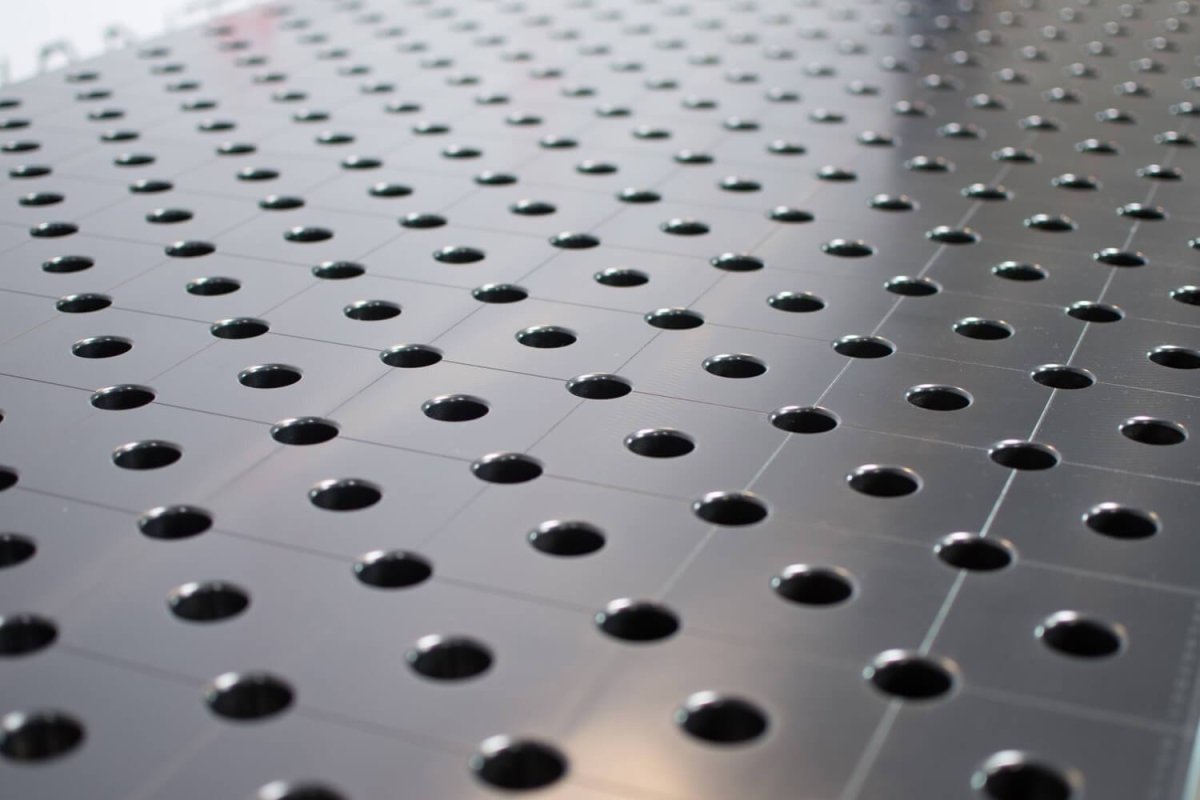

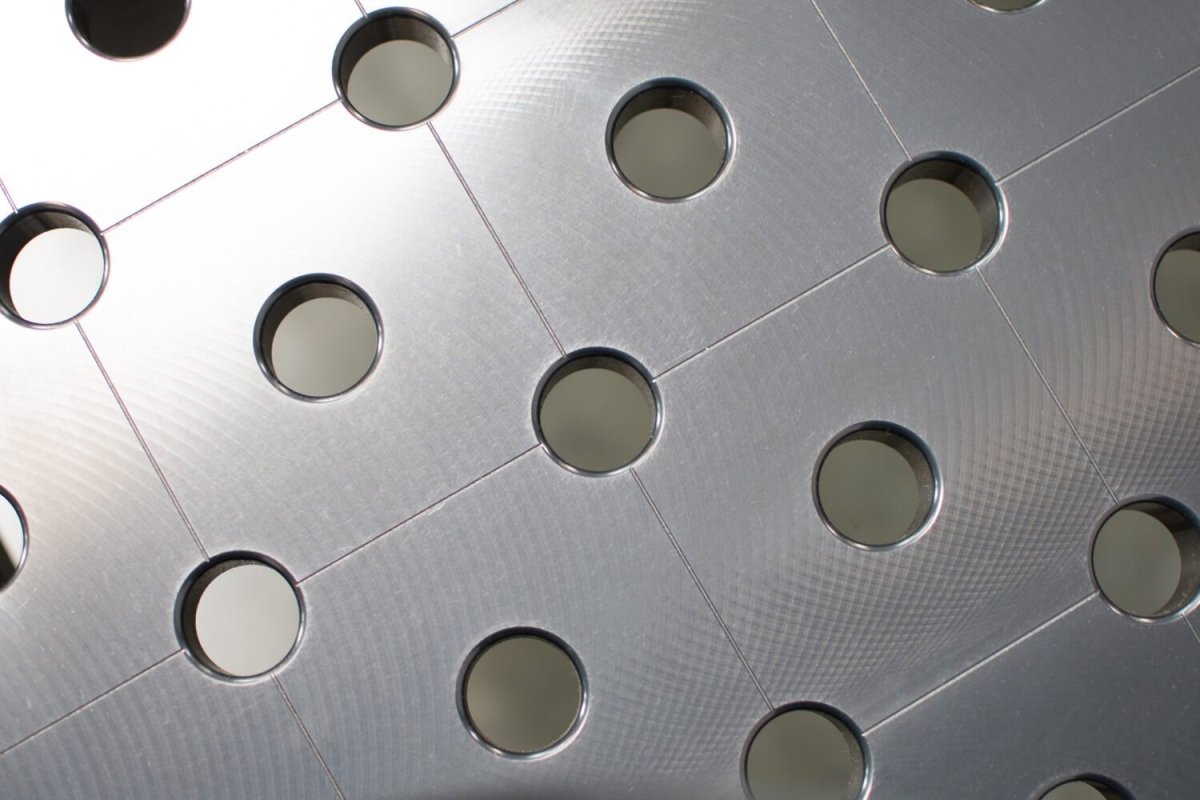

  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes are Ø 22mm (0.86") .
  3. Boreholes on Table Side 4 Rows with 50mm Spacing
  4. Height of table side 250mm

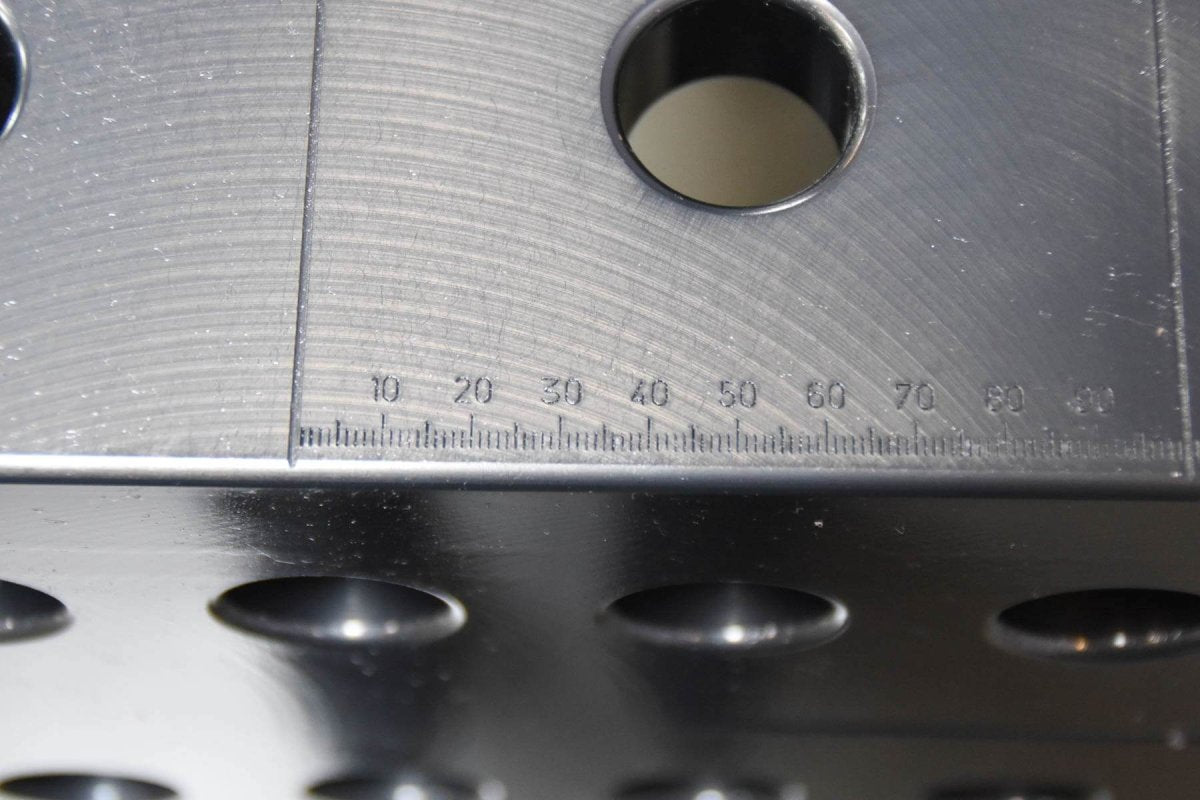

  5. Metric Scaling on the surface.
  6. Construction reinforced with ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

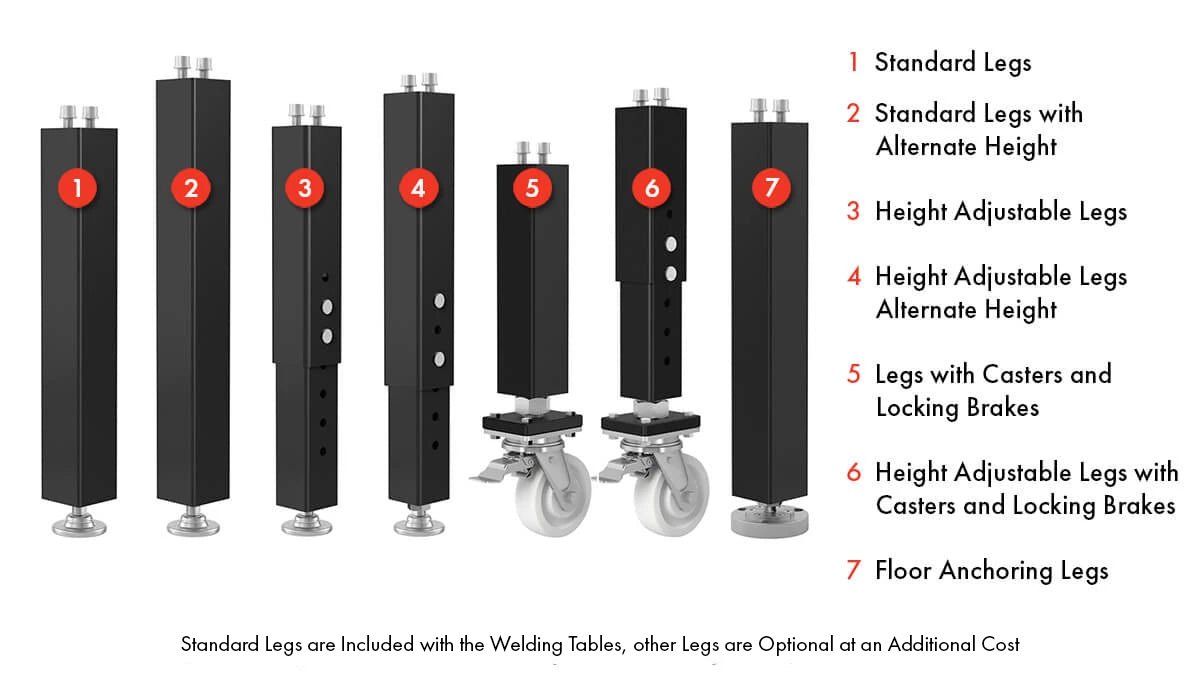

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

2-220853

3,300 lbs.

27.5" / 700mm

33.4" / 850mm

Included

2. Standard Leg
"Alternate Height"

2-220857.X

3,300 lbs.

31.5" / 800mm

41.3" / 1,050mm

$0

3. Height Adjustable Leg

2-220878.XX

2,200 lbs.

19.68"-31.5" / 500-800mm

29.5"-41.3" / 750-1,050mm

$108

4. Height Adjustable Leg
"Alternate Height"

2-220877.XX

2,200 lbs.

21.65"-35.4" / 550-900mm

31.5"-45.2" / 800-1,150mm

$109

5. Leg with Casters and
Locking Brakes

2-220860.XX

1,760 lbs.

27.5" / 700mm

33.4" / 850mm

$147

6. Height Adjustable Leg
with Casters and Locking Brakes

2-220879.XX

1,760 lbs.

23.6"-33.4" / 600-850mm

31.5"-43.3" / 850-1,100mm

$180

7. Floor Anchoring Leg

2-220872.XX

3,300 lbs.

27.5" / 700mm

33.4" / 850mm

$101


Siegmund System 22 Welding Table Leg Options - Full Specifications


1. Standard Siegmund Leg(s)

  • Item No.: 2-220853
  • Leg Height: 27.5" / 700mm
  • Table Height: 33.4" / 850mm

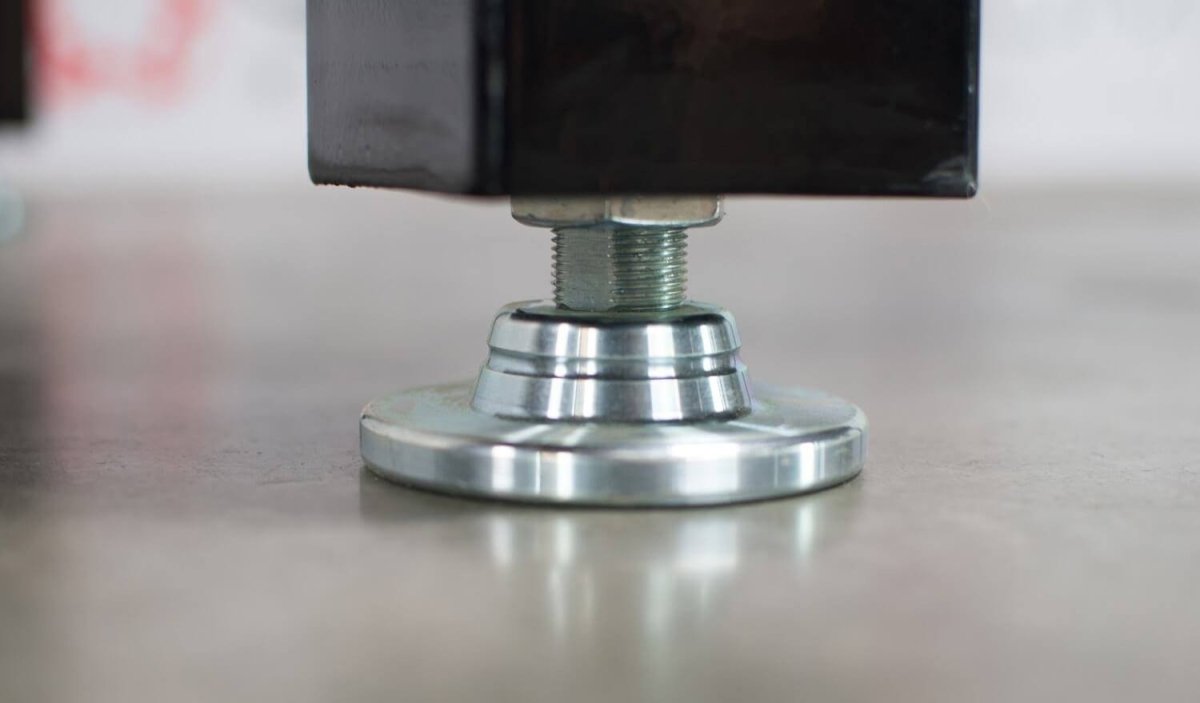

  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 3,300 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
2. Standard Siegmund Leg(s) "Alternative Height"
  • Item No.: 2-220857.X
  • Leg Height: 31.5" / 800mm
  • Table Height: 41.3" / 1,050mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 3,300 lbs.
  • Cost Per Leg: $0 (Can be substituted with Purchase of Table in place of the "Standard Siegmund Legs".)
  • Cost Per 6 Leg Set: $0

3. Height Adjustable Siegmund Leg(s)

  • Item No.: 2-220878.XX
  • Leg Height (Adjustable): 19.68" - 31.5" / 500mm - 800mm
  • Table Height (Adjustable): 29.5" - 41.3" / 750mm - 1,050mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $108
  • Cost Per 6 Leg Set: $648

4. Height Adjustable Siegmund Leg(s) "Alternate Height"

  • Item No.: 2-220877.XX
  • Leg Height (Adjustable): 21.65" - 35.4" / 550mm - 900mm
  • Table Height (Adjustable): 31.5" - 45.3" / 800mm - 1,150mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $109
  • Cost Per 6 Leg Set: $654

5. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 2-220860.XX
  • Leg Height: 27.5" / 700mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 0.80" / 20mm
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $147
  • Cost Per 6 Leg Set: $882
  • Note: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.

6. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 2-220879.XX
  • Leg Height (Adjustable): 23.6" - 33.4" / 600mm - 850mm
  • Table Height (Adjustable): 29.5" - 39.37" / 850mm - 1,100mm
  • Fine Adjustment: 0.80" / 20mm
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $180
  • Cost Per 6 Leg Set: $1,080
  • Note: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.

7. Siegmund Leg(s) for Floor Anchoring

  • Item No.: 2-220872.XX
  • Leg Height: 27.5" / 700mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $101
  • Cost Per 6 Leg Set: $606
