Manufacturer: Siegmund
Part No. (SKU): 4-220040.XD7 + (x6) 2-220858
Current Availability in the USA: 2 In Stock
Series: System 22 Welding Tables
$8,883
$13,049
$8,883
Table Legs: 6 Standard Legs
Subtotal: $8,883

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

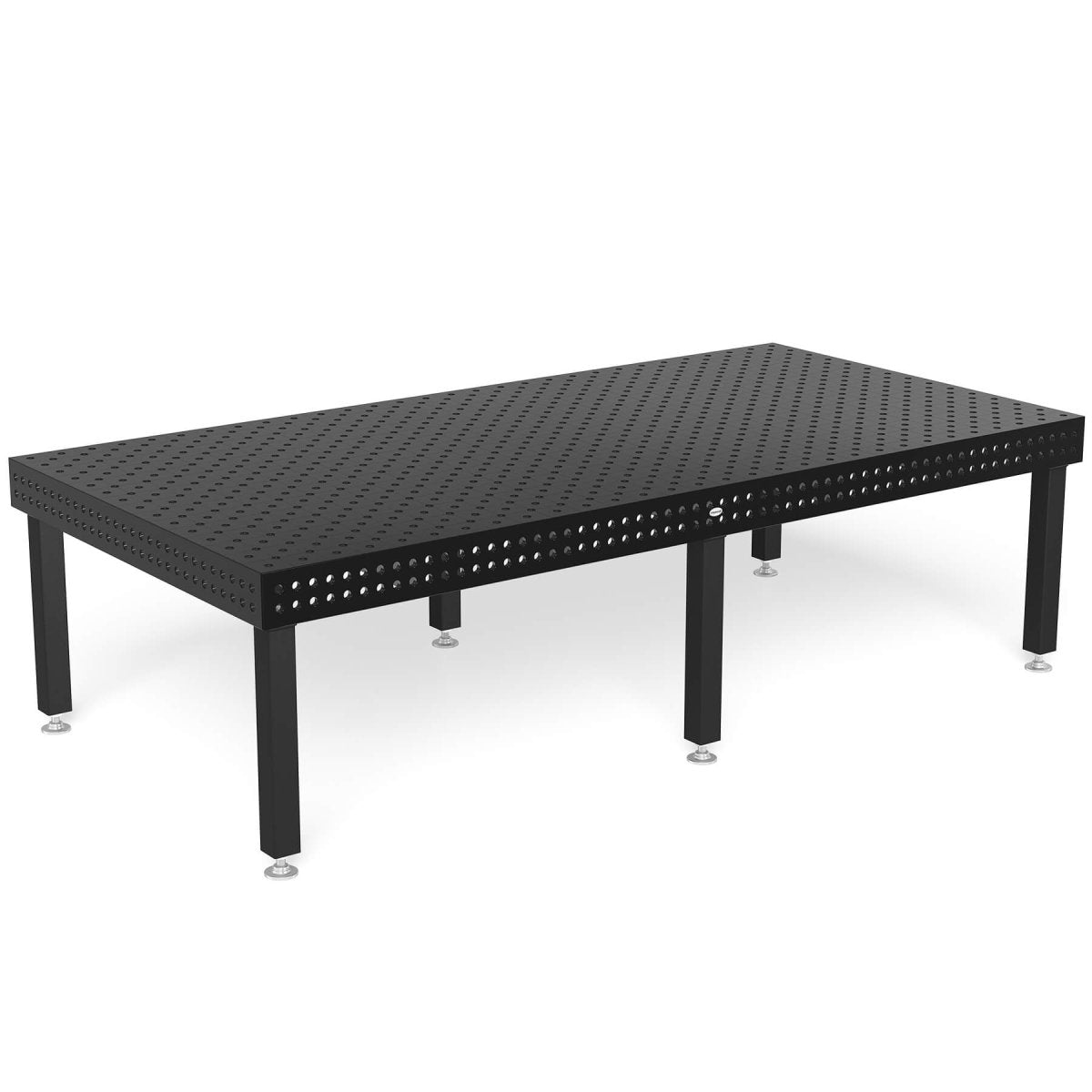

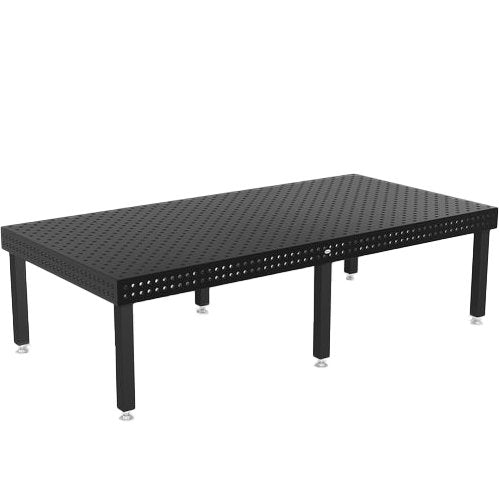

(Image is of a Siegmund System 22 Professional 8.7 Series, 3000x1500 Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)

The All-New System 22 Welding Table Series are more stable than the System 16 Series & More Cost-Effective than the System 28 Series Welding Tables.

All System 22 Siegmund Welding Tables feature the latest upgrades in aesthetics, versatility, and durability.

Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.

The hardened X7 steel, specially made for Siegmund, has a considerably higher basic hardness as the previously used fine-grained S355J2+N (St 52/3).

The top plate achieves a hardness of about 750 vickers after the plasma nitration and the BAR-Treatment. The higher basic hardness maintains the flatness much better than the previously used steel.

Specs and Features

of the System 22, Professional 8.7 Series Welding Tables

Specs & Features
of the System 22, 8.7 Series Welding Tables

Welding Table Specs and Features:

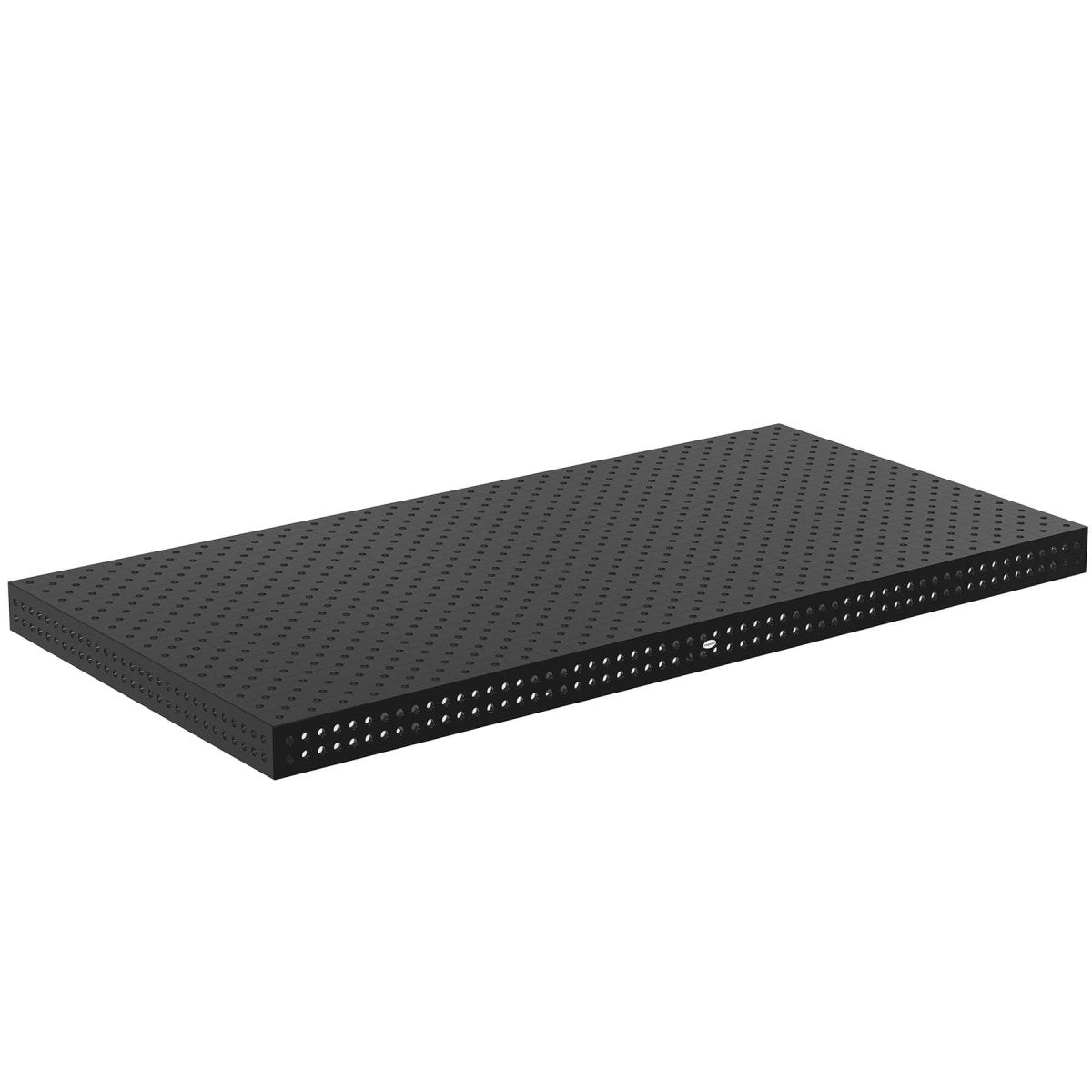

  • Overall Tabletop Size: 3,000x1,500mm
  • Borehole Diameter Size: Ø 22mm (0.86")
  • Welding Table Series: Professional 8.7 Series
  • Welding Table Material Thickness: Approx. 17 – 19mm (0.66" - 0.75")
  • Welding Table Material Type and Finish: This Welding Table is manufactured of high quality S355J2+N Tool Steel, Plasma Nitrided and BAR-Coated.
  • Table Surface Hardness: 280 – 340 Vickers
  • Official Siegmund Welding Table Part No.: 4-220040.XD7
  • Maximum Weight Load: 10,835 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 2,365 lbs. / 1,073 kg.

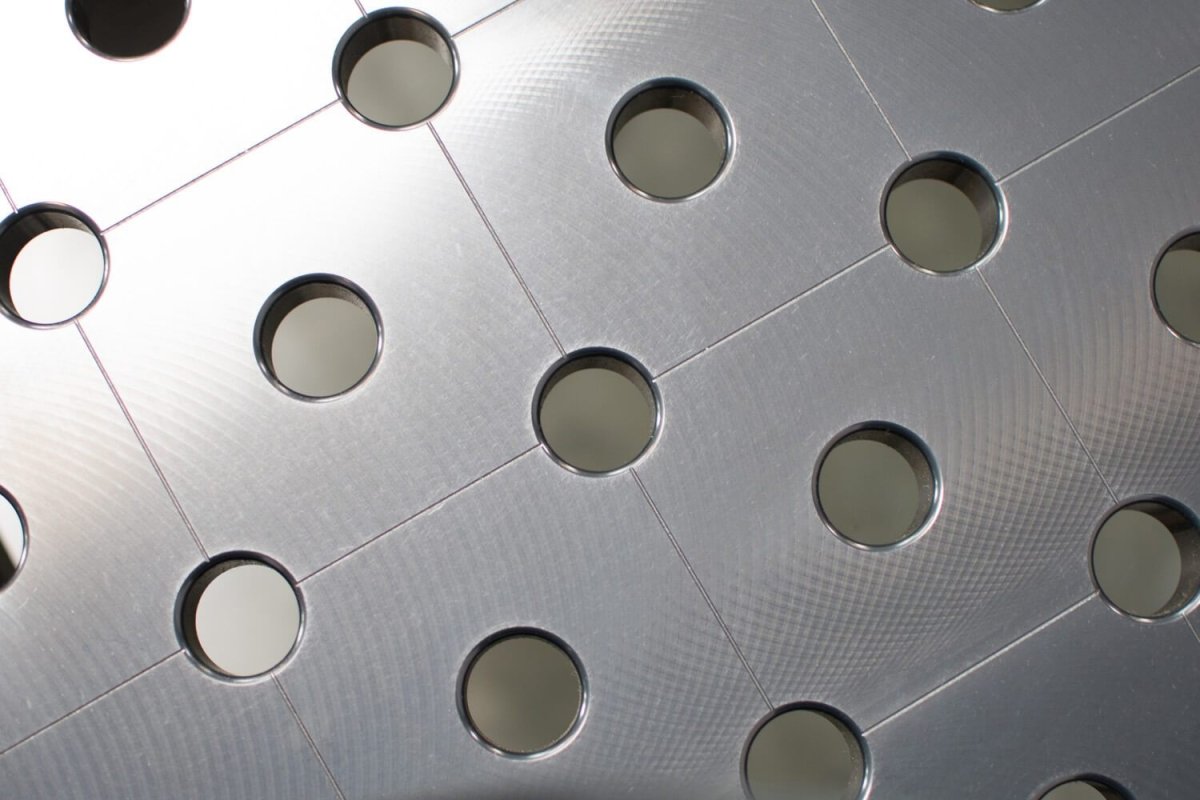

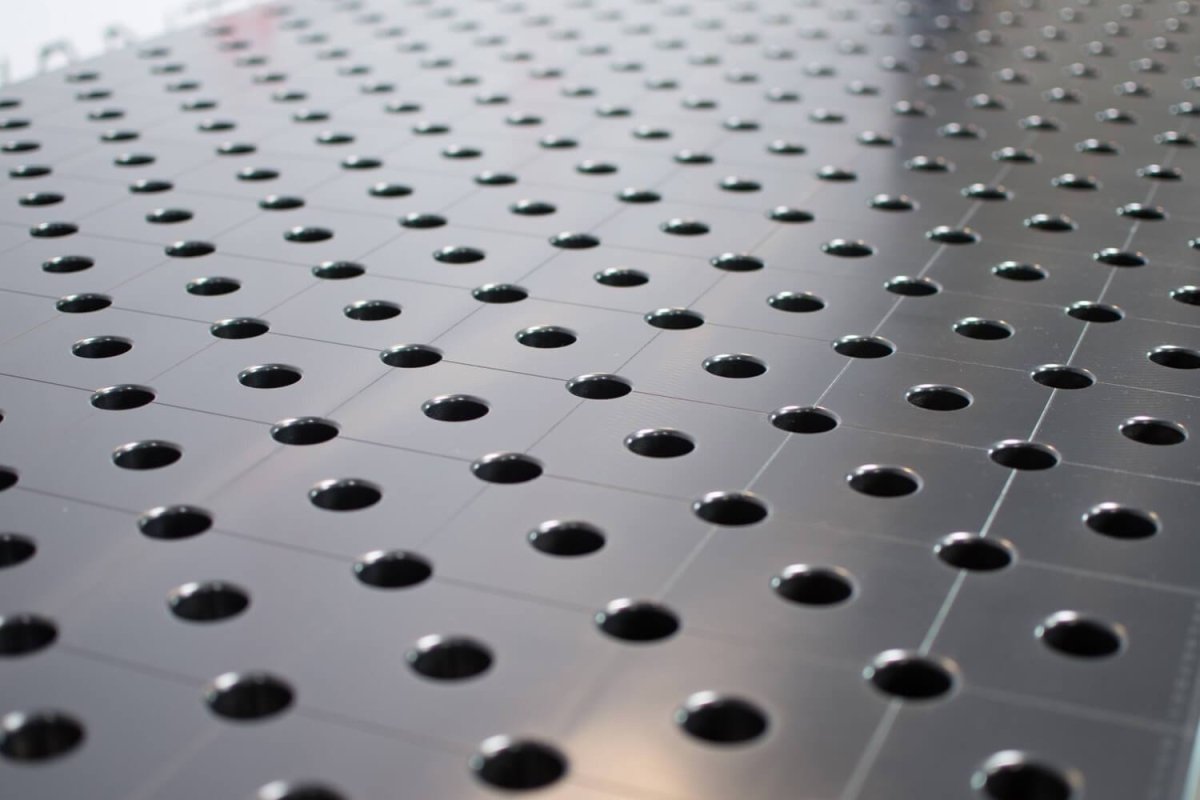

  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes are Ø 22mm (0.86") .
  3. Corners, edges and boreholes rounded.
  4. Height of table side 150mm (5.90")

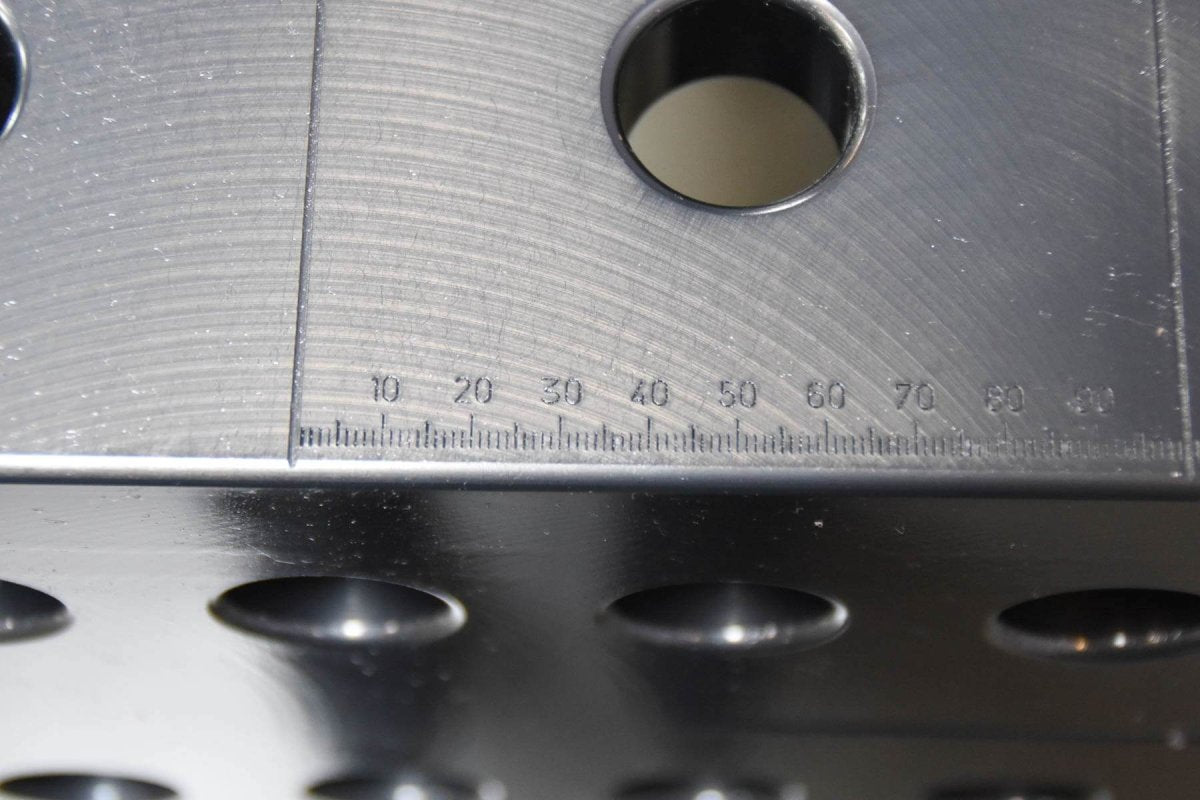

  5. Metric Scaling on the surface.
  6. Construction reinforced with ribbing.

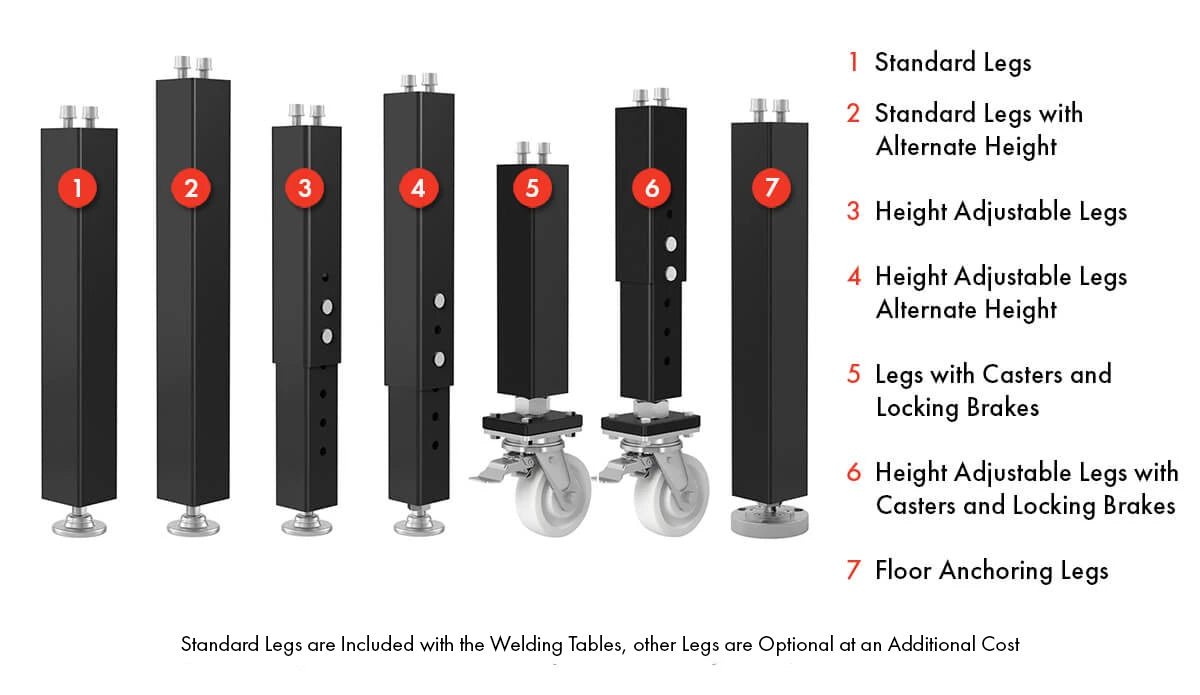

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

2-220858

3,300 lbs.

27.5" / 700mm

33.4" / 850mm

Included

2. Standard Leg
"Alternate Height"

2-220857.X

3,300 lbs.

31.5" / 800mm

37.4" / 950mm

$0

3. Height Adjustable Leg

2-220878.XX

2,200 lbs.

19.68"-31.5" / 500-800mm

25.6"-37.4" / 650-950mm

$108

4. Height Adjustable Leg
"Alternate Height"

2-220877.XX

2,200 lbs.

21.65"-35.4" / 550-900mm

27.5"-41.3" / 700-1,050mm

$109

5. Leg with Casters and
Locking Brakes

2-220866.XX

1,760 lbs.

27.5" / 700mm

33.4" / 850mm

$150

6. Height Adjustable Leg
with Casters and Locking Brakes

2-220879.XX

1,760 lbs.

23.6"-33.4" / 600-850mm

29.5"-39.37" / 750-1,000mm

$180

7. Floor Anchoring Leg

2-220874.XX

3,300 lbs.

27.5" / 700mm

33.4" / 850mm

$103

Siegmund System 22 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: 2-220858
  • Leg Height: 27.5" / 700mm
  • Table Height: 33.4" / 850mm

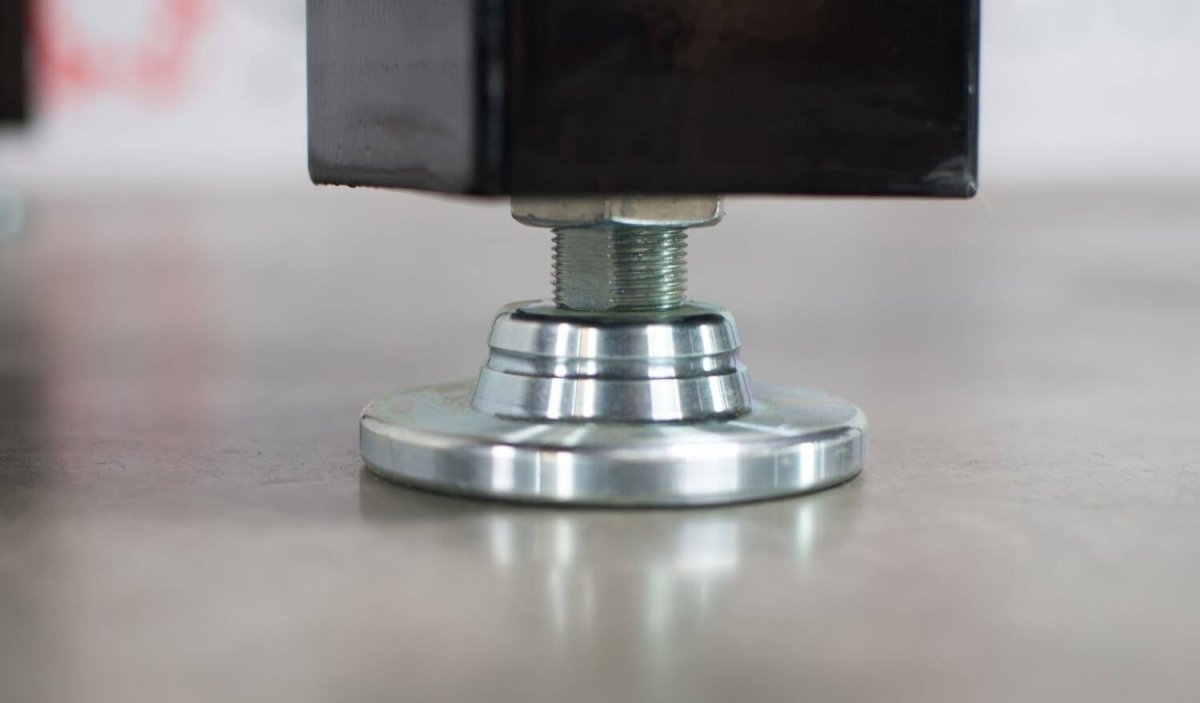

  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 3,300 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
2. Standard Siegmund Leg(s) "Alternative Height"
  • Item No.: 2-220857.X
  • Leg Height: 31.5" / 800mm
  • Table Height: 37.4" / 950mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 3,300 lbs.
  • Cost Per Leg: $0 (Can be substituted with Purchase of Table in place of the "Standard Siegmund Legs".)
  • Cost Per 6 Leg Set: $0

3. Height Adjustable Siegmund Leg(s)

  • Item No.: 2-220878.XX
  • Leg Height (Adjustable): 19.68" - 31.5" / 500mm - 800mm
  • Table Height (Adjustable): 25.6" - 37.4" / 650mm - 950mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $108
  • Cost Per 6 Leg Set: $648

4. Height Adjustable Siegmund Leg(s) "Alternate Height"

  • Item No.: 2-220877.XX
  • Leg Height (Adjustable): 21.65" - 35.4" / 550mm - 900mm
  • Table Height (Adjustable): 27.5" - 41.3" / 700mm - 1,050mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $109
  • Cost Per 6 Leg Set: $654

5. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 2-220866.XX
  • Leg Height: 27.5" / 700mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 0.78" / 20mm
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $150
  • Cost Per 6 Leg Set: $900
  • Note: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.

6. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 2-220879.XX
  • Leg Height (Adjustable): 23.6" - 33.4" / 600mm - 850mm
  • Table Height (Adjustable): 29.5" - 39.37" / 750mm - 1,000mm
  • Fine Adjustment: 0.78" / 20mm
  • Capacity Per Table Leg: 1,760 lbs.
  • Cost Per Leg: $180
  • Cost Per 6 Leg Set: $1,080
  • Note: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.

7. Siegmund Leg(s) for Floor Anchoring

  • Item No.: 2-220874.XX
  • Leg Height: 27.5" / 700mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 3,300 lbs.
  • Cost Per Leg: $103
  • Cost Per 6 Leg Set: $618
