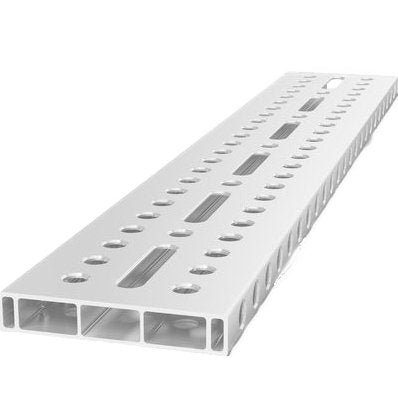

The Siegmund 1,200x200x36mm Aluminum Profile Bracket with Elongated Hole delivers exceptional flexibility and precision for modular welding, assembly, and inspection setups. Its full grid pattern and elongated slot provide adjustable clamping options while maintaining strength and corrosion resistance in a lightweight form.
- Manufactured from precision-machined aluminum for strength and low weight.
- Elongated hole supports angled or adjustable clamping configurations.
- Corrosion-resistant surface ensures long service life and clean performance.
- Full bore grid layout enables multiple mounting and fixturing options.
- Lightweight construction allows quick manual handling and setup changes.
- Compatible with Siegmund System 22 accessories and clamping components.
Key Features:
- Elongated slot allows variable and angular clamping flexibility.
- Lightweight design enables easy positioning and adjustments.
- Corrosion-resistant finish prevents oxidation and weld spatter adhesion.
- Full hole grid ensures precise, repeatable clamping positions.
- Ideal for both horizontal extensions and vertical fixture applications.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 1,200mm (47.24" Inches)
- Width: 200mm (7.87" Inches)
- Height: 36mm (1.42" Inches)
- Material: Aluminum
- Weight: 13.16 lbs. (5.97 kg.)
Common Uses:

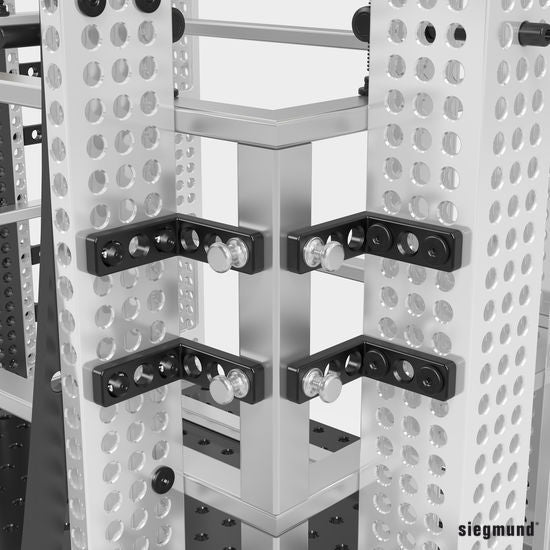

The Siegmund 4-AR22014120.VL 1,200x200x36mm Aluminum Profile Bracket with Elongated Hole is used for adjustable modular setups in welding and assembly applications. Its elongated slot provides flexible angular positioning, making it ideal for vertical fixturing, table extensions, and custom assemblies where lightweight precision and corrosion resistance are essential.
