Description

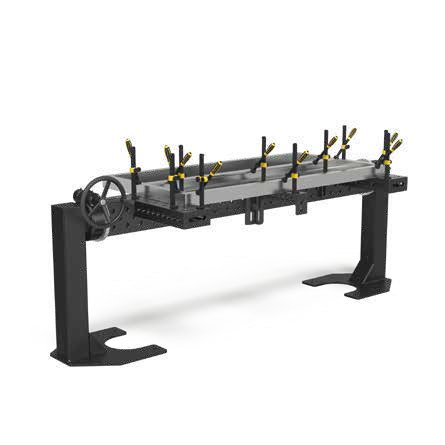

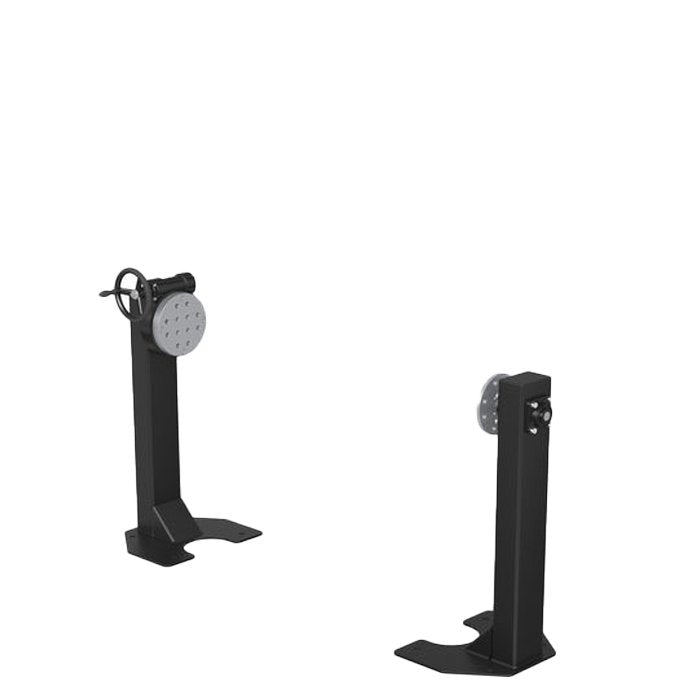

THE SIEGMUND M-POSITIONER
IS IDEAL FOR ANY WELDING, ASSEMBLIY, AND MAINTENANCE TASK.

The Siegmund Positioner has an Infinitely Adjustable Vertical/Height Adjustment with Hydraulic Rotary and Tilt Functions. Made Specifically for Clamping of Components on Siegmund U-Squares.

PRODUCTIVITY

• Rapid Alignment of Workpieces.
• Optimum Ergonomic Positioning Offers Maximum Productivity.
• One Set-up for Rotating.
• Reduced Down Time.

TECHNICAL CHARACTERISTICS

• Force Transmission through a Bearing with Integrated Gear.
• Drive Manually via Hand Wheel.
• Universal Flange for Clamping of Siegmund U-Squares. (U-Shapes Sold Separately)

ERGONOMICS

• Convenient Access to Component Delivers Best Product Performance.
• Reduced Risk of Repetitive Strain Injury.

IMPROVED QUALITY

• Improved Quality with Flexible Positioning (Flat Position).
• Improved Quality through Maximum Access.

HEAVY-DUTY SQUARE U-SHAPES (SOLD SEPARATELY)

• A Multitude of Clamping Combination Options with Squares and Stops by the Five-Sided Bore Holes.
• Supports Squares up to 1,500 mm (59") in Length.
• Each Square is Connected with Connecting Bolts for a Secure Hold.

Specs and Features

of the MP 500 M-Positioner

Item No. 6M050016

Specs & Features
of the Siegmund M-Positioner

Welding Table Specs and Features:
Item No. 6M050016
- Weight Positioner Approx.: 242 lbs. (110 kg)
- Max. Load-Bearing Capacity: 1,102 lbs. (500 kg)
- Turning Moment: 100 Nm
- Control: Hand Wheel with Handle Ø 200 mm
- Drive: Manual
- Gear Ratio: 1:73
- Axis of Rotation: Horizontal
- Square U-Shape Compatibility: System 16
- Max. Length Square U-Shape: 1,500 mm (59")

A - Working Height: 850 mm (33.5")
B - Tower Height: 955 mm (37.4")
C - Total Height: 1,083 mm (42.6")
D - Base Plate Width: 500 mm (19.7")
E - Base Plate Length: 400 mm (15.7")
