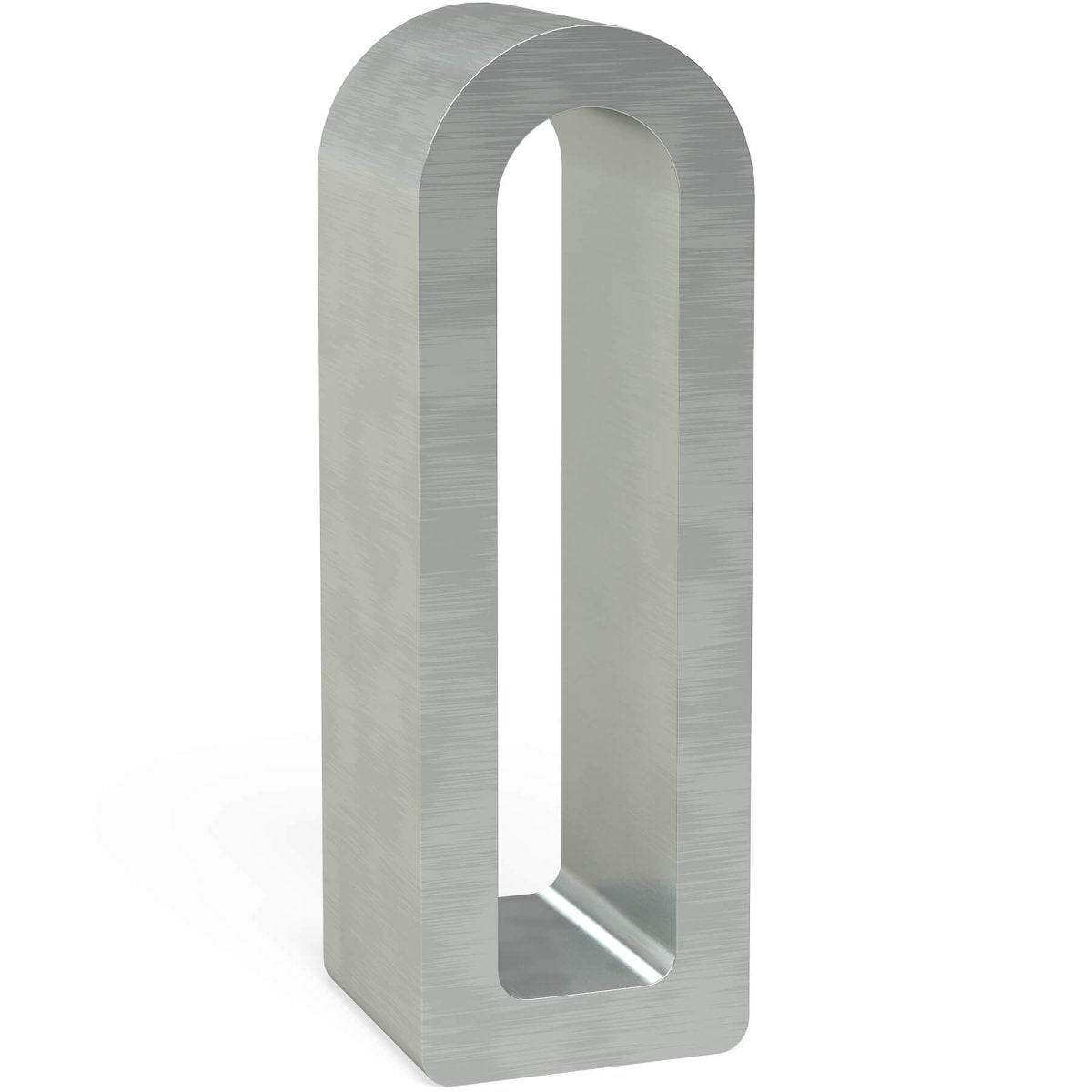

Flex Stop 50x156mm (1.96"x6.14") - Aluminum (Item No. 2-280414)

Flex Stop 50x156mm (1.96"x6.14") - Aluminum (Item No. 2-280414)

Availability: Pre-Order
Successful pre-order.Thanks for contacting us!
Wishlist Compare

Flex Stop Aluminum (Item No. 2-280414, also known as S2-280414), individually adjustable through the oblong slot. Due to its radiused clamping sides, the flex stops are extremely versatile, and can be used in corners as well as freeform stop surfaces. The Flex Stop is favored when working with stainless steel and in confined spaces.

Specs and Features:

  • Long Clamping Bolt is Required
  • Length (a): 156mm (6.14")
  • Width (b): 52mm (2.0")
  • Material Thickness (d): 50mm (1.96")
  • Wall Thickness (d1): 12mm (0.47")
  • Adjusting Range (f): 100mm (3.93")
  • Weight: 1.32 lbs. / 0.60 kg.
Click on the link below to download the PDF version of the latest Siegmund Catalog with updated pricing!! CLICK HERE
(Pricing is valid until February 2nd, 2020)
