    • Square U-Shape (Riser Block) 1000x400x400 - Plasma Nitrided (Item No. 2-280370.3.P) - Quantum Machinery Group: Official US Welding Tables and Fixtures Division
    SKU: 2-280370.3.P

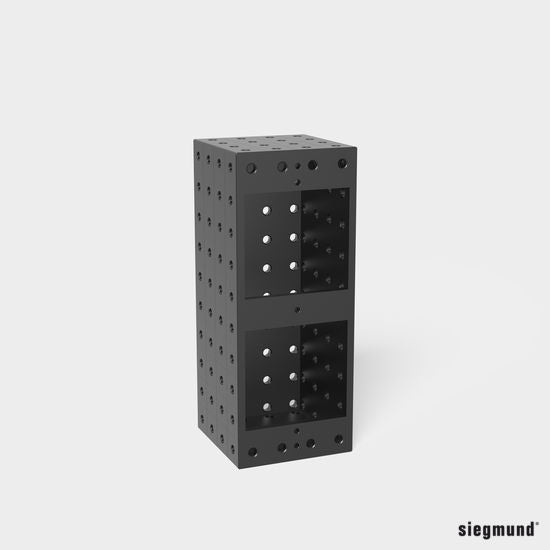

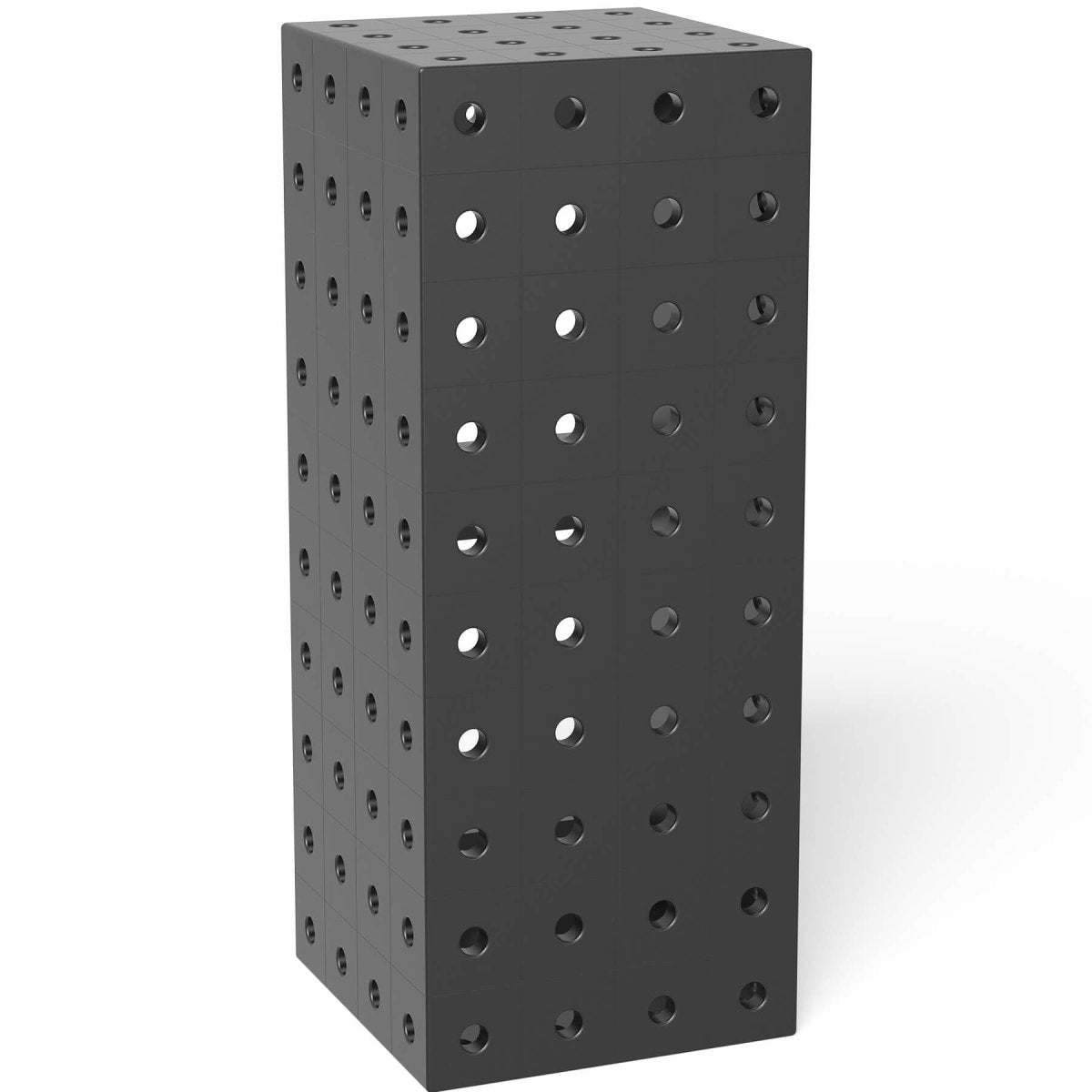

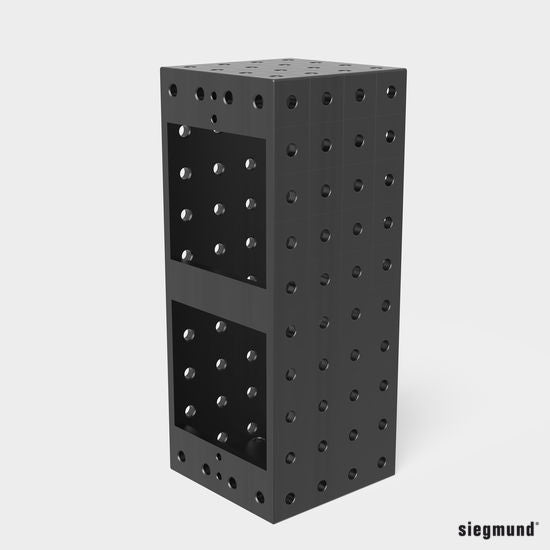

    Square U-Shape (Riser Block) 1000x400x400 - Plasma Nitrided (Item No. 2-280370.3.P)

    $3,024
    • Product Type: 28mm Welding Table Accessories
    ADD TO CART
    Trust Badge
    • Description
    • Featured Videos & PDF Downloads
    • Contact Us
    Description

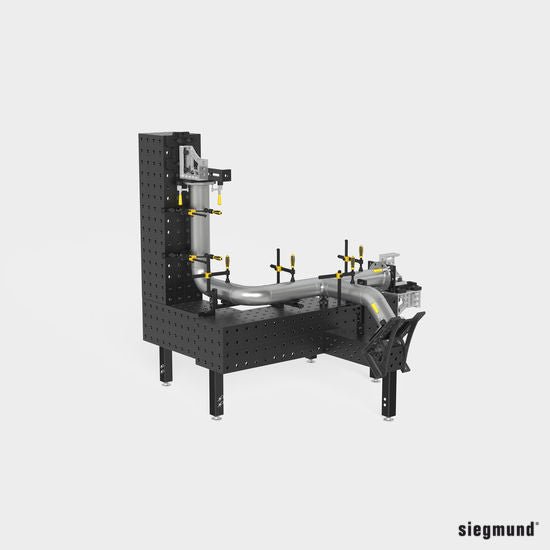

    Square U-Shape 400/400 (sides 400 mm) (Item No. 2-280370.3.P, also known as S2-280370.3.P), for working with superstructures and heavy work pieces. Riser Blocks are firmly screwed by using connector bolts (Item No. 280560). When used as a table extension exceeding 1000 mm, the Riser Block has to be supported by a table leg. Combined with the legs (Item No. 280371), Riser Blocks can be flexibly used on the foundation rails. A multitude of clamping- and connection options, using different Riser Blocks and Stops, are facilitated by
    the five-sided bore holes and the optional diagonal hole arrangement. The 100x100 mm grid simplifies orientation.

    Specs and Features:

    • Length: 1000mm (39.37'')
    • Width: 400mm (15.74'')
    • Height: 400mm (15.74'')
    • Weight: 716.50 Ibs



    Featured Videos & PDF Downloads

    Featured Downloads

    - Click HERE to Download our LATEST Quantum Machinery, Siegmund Welding Tables and Clamping Systems Catalog
    (Pricing Valid until September 30, 2018)



    Featured Videos

    The First Video below displays the Toughness and Hardness of our System 28 Professional Extreme 8.8 Series Welding Tables. Showing why our Welding Tables are unsurpassable in Strength and Reliability. The Second Video explains why we Plasma-Nitride most of our products.

    Contact Us

    Contact us with any questions or inquiries that you may have.


    Phone: (909) 476-8007
    Email: Sales@WeldingTablesandFixtures.com
    Our U.S. Headquarters: 10270 Birtcher Drive, Mira Loma, California 91752
