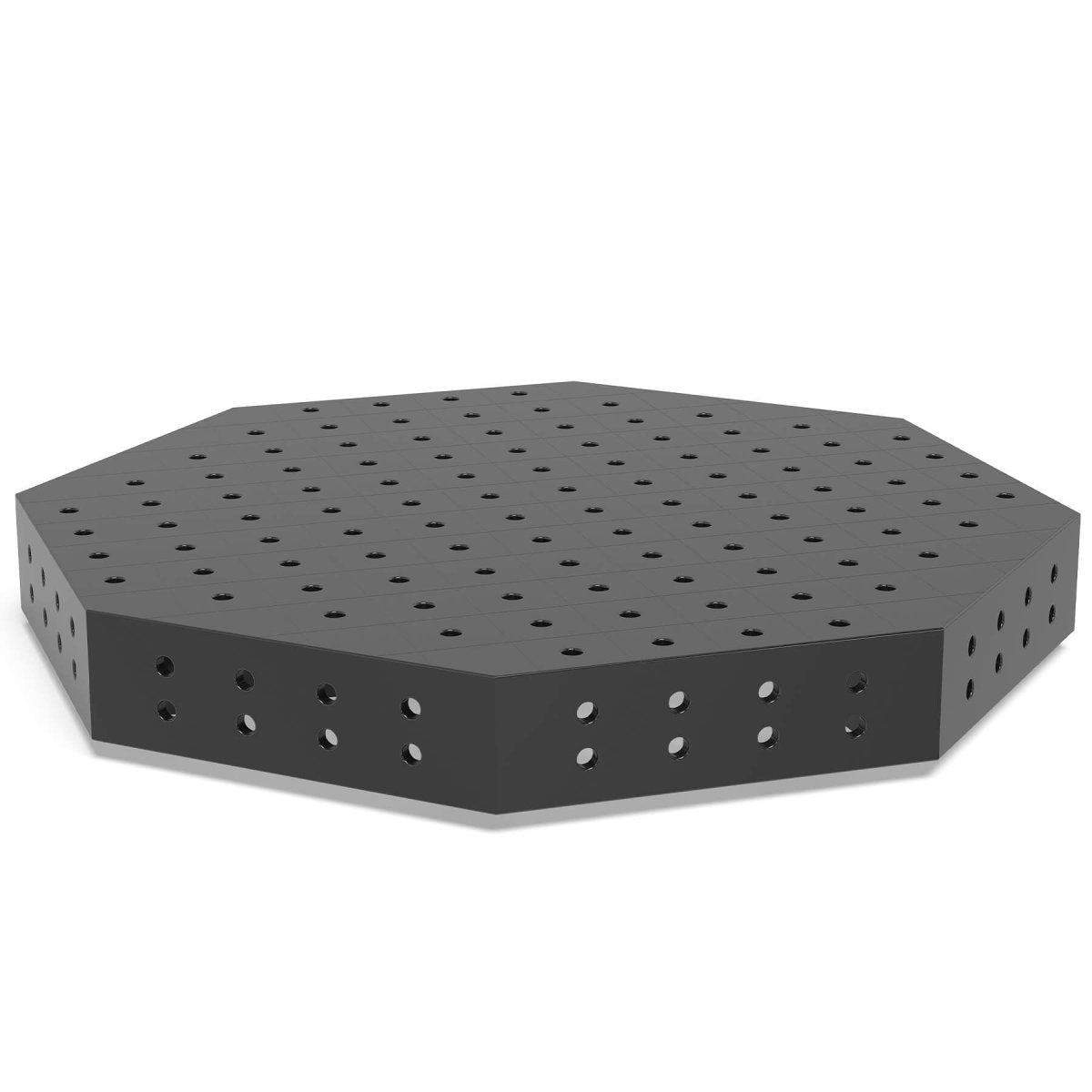

The Siegmund Octagonal Table SW 1,200x150mm delivers a highly stable, precision-fixturing surface optimized for use with robotic manipulators and automated welding cells. Its octagonal form provides multi-directional access and consistent hole spacing across all sides, improving fixture flexibility and process efficiency in tight work envelopes.
- Constructed from S355J2+N steel for exceptional strength and load-bearing capacity.
- Plasma nitrided finish ensures long-term resistance to wear, corrosion, and weld spatter.
- Parallel hole pattern matches Siegmund System 22 for full compatibility with standard accessories.
- Diameter of 1,299mm (51.1" Inches) provides ample working area for medium-to-large assemblies.
- Adapter plate available for use with positioners or custom automation setups.
- Custom configurations and connecting hole patterns available upon request.
Key Features:
- Octagonal shape allows unrestricted access for robots and fixtures.
- Plasma nitrided surface delivers exceptional durability and precision.
- System 22 compatibility ensures seamless integration with Siegmund tooling.
- Heavy-duty 368 kg (811.3 lbs.) weight ensures maximum stability under load.
- Ideal for precision automation, robotic welding, and modular workstations.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 497mm (19.6" Inches)
- Width: 1,200mm (47.2" Inches)
- Height: 150mm (5.9" Inches)
- Diameter: 1,299mm (51.1" Inches)
- Material: S355J2+N Steel
- Material Thickness: 18mm (0.71" Inches)
- Weight: 811.3 lbs. (368 kg.)
- Surface: Plasma Nitrided
Common Uses:
This Siegmund Octagonal Table is used in robotic welding cells, precision manufacturing, and automated assembly environments where multi-axis access and consistent clamping geometry are critical. It provides a robust and accurate foundation for positioners, manipulators, and modular fixturing systems, ensuring repeatable alignment and long-term reliability under demanding production loads.
