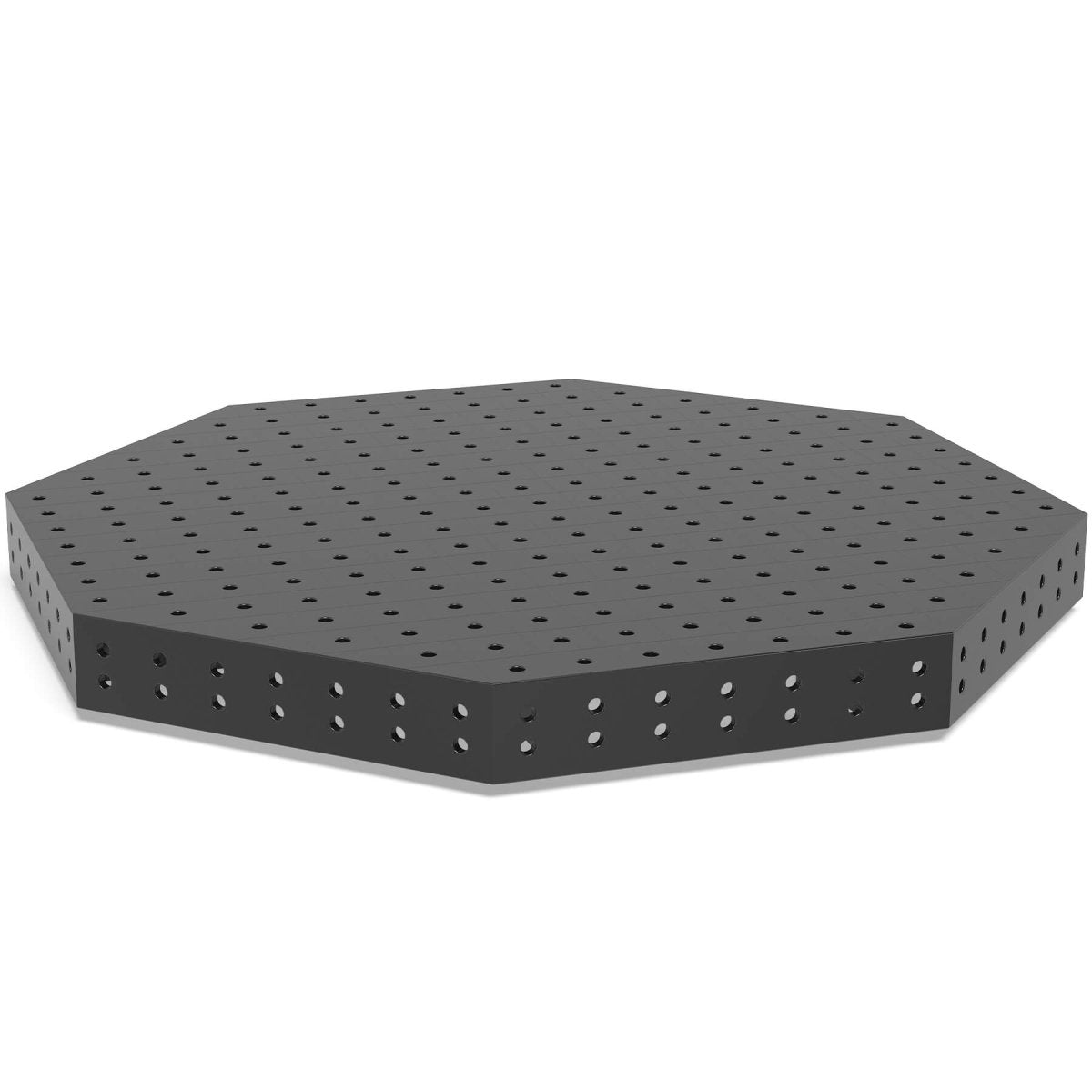

The Siegmund Octagonal Table SW 1,700x150mm provides an exceptionally rigid and accessible platform for robotic welding, automation, and heavy fabrication. Its octagonal geometry allows manipulators, fixtures, and tools to approach from any direction, enhancing workflow efficiency and precision alignment in demanding production environments.
- Manufactured from S355J2+N steel for superior load-bearing strength and durability.
- Plasma nitrided surface resists wear, corrosion, and weld spatter over long-term use.
- Large 1,840mm (72.4" Inches) diameter workspace accommodates heavy assemblies.
- System 22 hole pattern ensures full compatibility with Siegmund tooling systems.

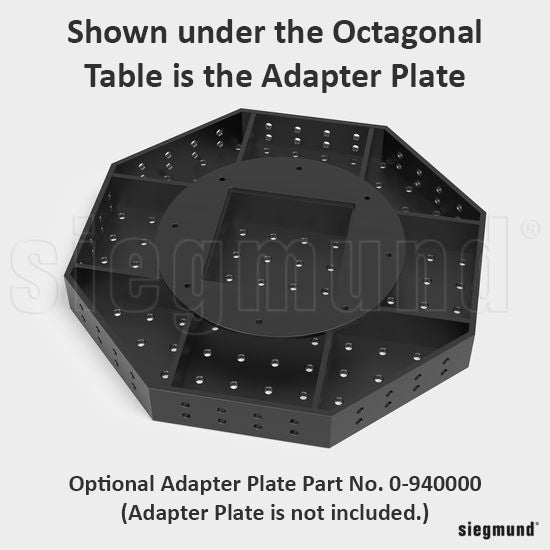

- Adapter plate options enable integration with robotic positioners and automation setups.
- Custom configurations and grid patterns available upon request for specialized use.
Key Features:
- Octagonal layout maximizes accessibility for robotic and modular fixture systems.
- Plasma nitrided finish provides exceptional longevity and precision stability.
- Weighs 655 kg (1,444.0 lbs.) for superior rigidity and vibration control.
- Fully compatible with Siegmund System 22 components and clamping accessories.
- Engineered for automated welding, fixture development, and high-precision assembly.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 704mm (27.7" Inches)
- Width: 1,700mm (66.9" Inches)
- Height: 150mm (5.9" Inches)
- Diameter: 1,840mm (72.4" Inches)
- Material: S355J2+N Steel
- Material Thickness: 18mm (0.71" Inches)
- Weight: 1,444.0 lbs. (655 kg.)
- Surface: Plasma Nitrided
Common Uses:
This Siegmund Octagonal Table delivers unmatched performance for robotic welding, automated assembly cells, and multi-axis fabrication environments. Its stable, precision-machined surface ensures accurate repeatability and efficient workflow across diverse fixture configurations. The large octagonal format supports maximum access and operational flexibility for complex, high-value production tasks.
