US280532: Short Universal Bolt (Burnished)
- Product SKU: US280532
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 28 Imperial Series (INCH) Welding Tables and Fixturing Accessories

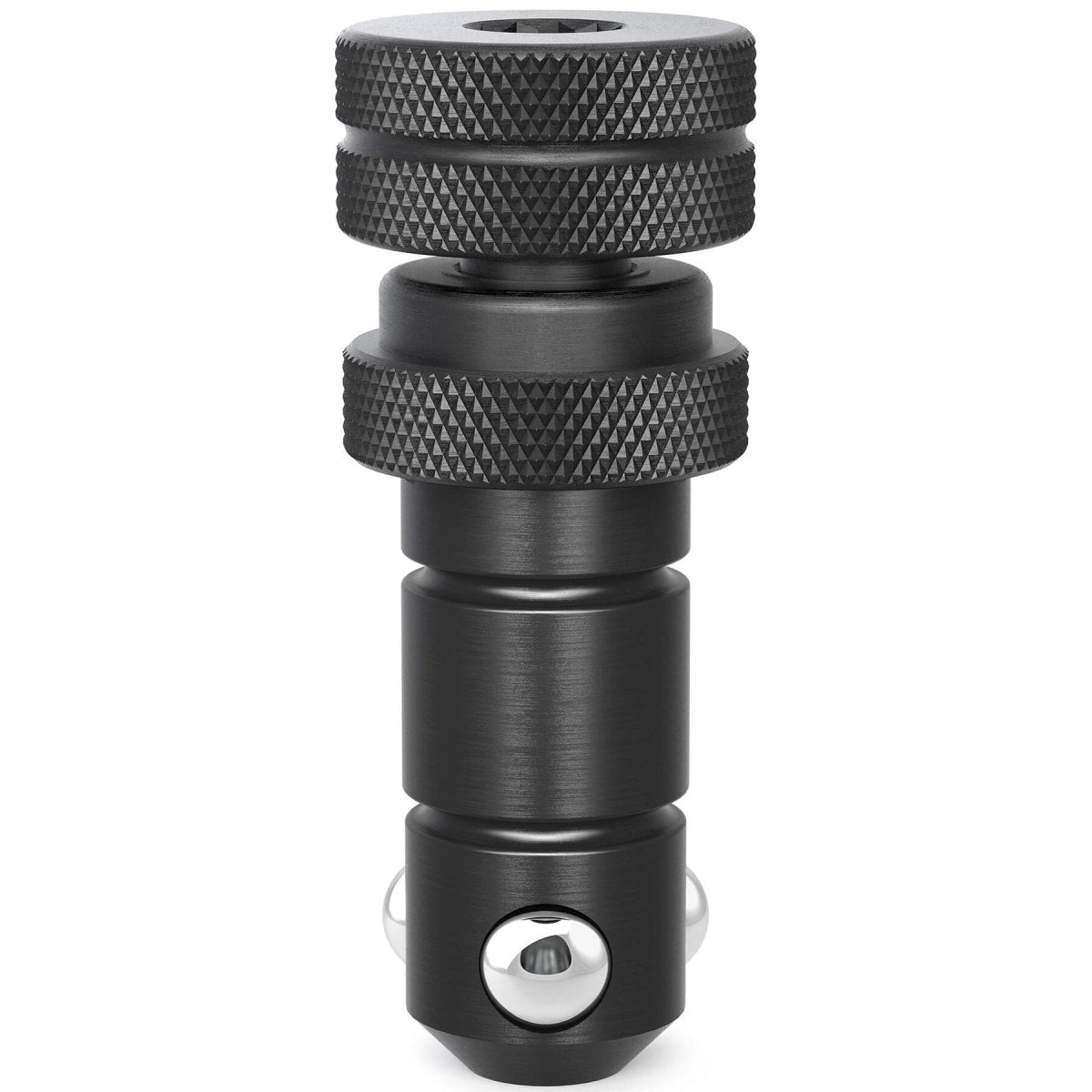

Item No. US280532: Short Comfort Universal Bolt (Burnished) for the Siegmund System 28 Imperial Series (INCH) Welding Tables

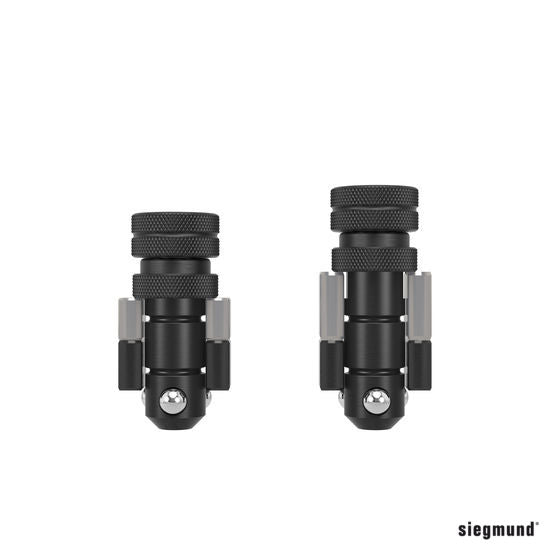

Burnished Universal Bolt (locking bolt), perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt (US280532) is 1.77" to 2". The long Universal Bolt (US280533) has a clamping range of 2.75" to 3". The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the bore hole.
The Universal Bolt is clamped with the integrated handwheel or with a hex wrench 14 (Item No. US280854).
Note: This bolt CANNOT be used for connecting tables and U-shaped squares!
- For Clamping 2 Siegmund Components
- Length: 3.9"
- Shearing Force: 200 kN
- Tensile Force: 25 kN
- Tightening Torque Steel: 25 Nm
- Tightening Torque Aluminum: 10 Nm
- Diameter: 28mm (1-1/10")
- Weight: 1.3 lbs.
