US280652.1: 4.7" Ø 157° Prism with Screwed-In Collar (Burnished/Nitrided)
- Product SKU: US280652.1
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 28 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US280652.1: 4.7" Ø 157° Prism with Screwed-In Collar (Burnished/Nitrided) for the Siegmund System 28 Imperial Series (INCH) Welding Tables

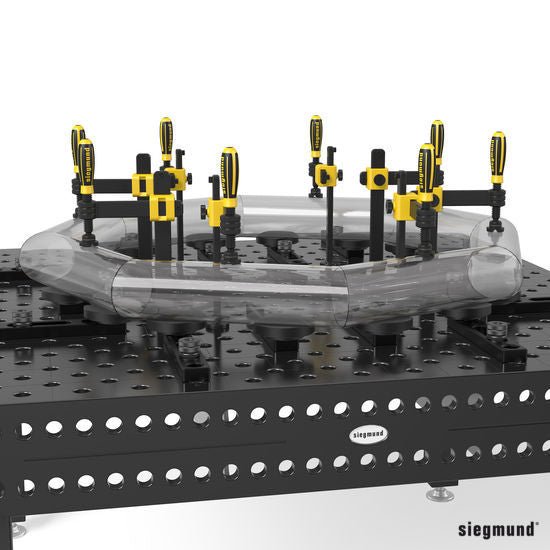

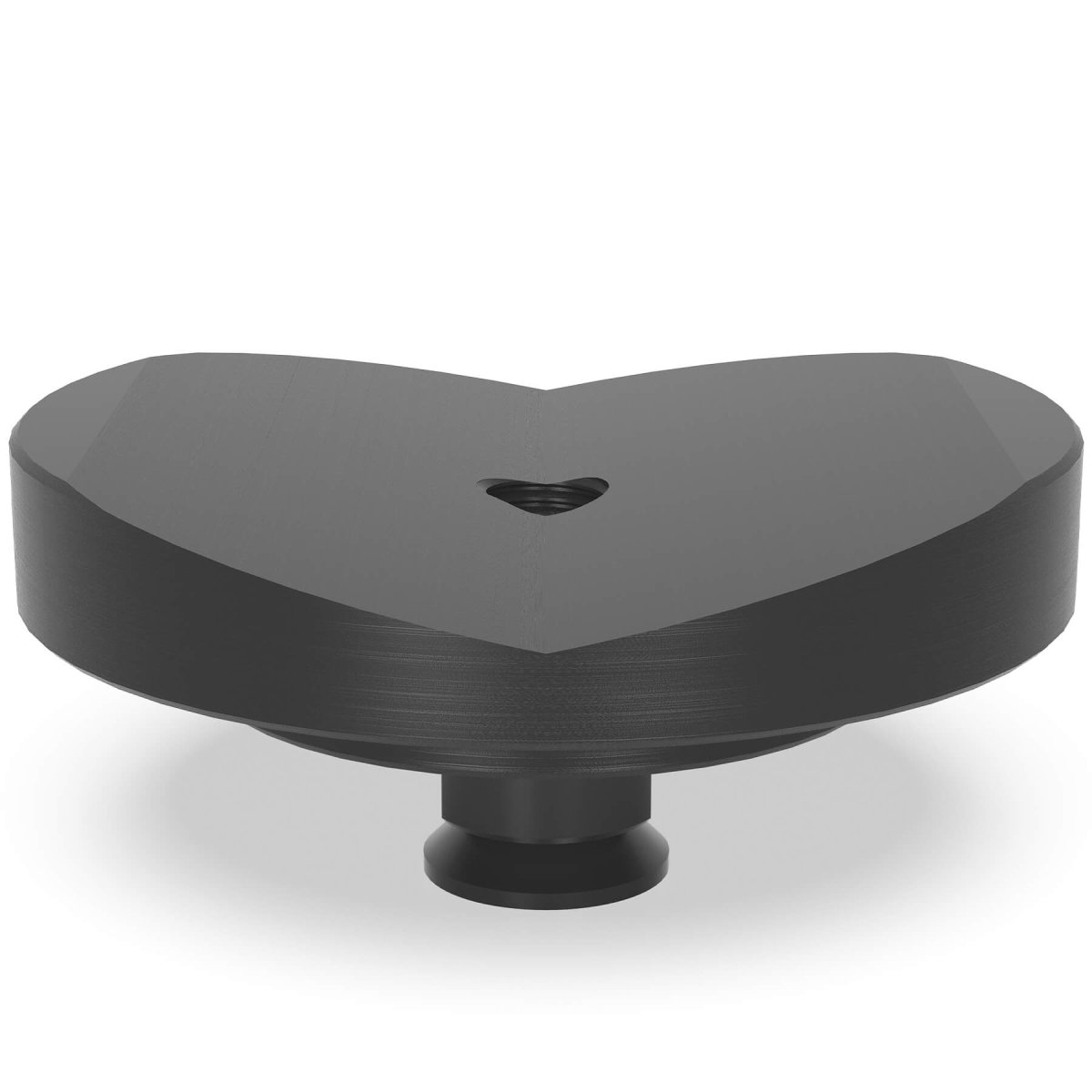

The Siegmund 4.7" Ø Prism with Screwed-In Collar with 157° angle, is designed for large pipes with a diameter of up to 15-3/4". Above all, it creates a solid support surface for round pipes.

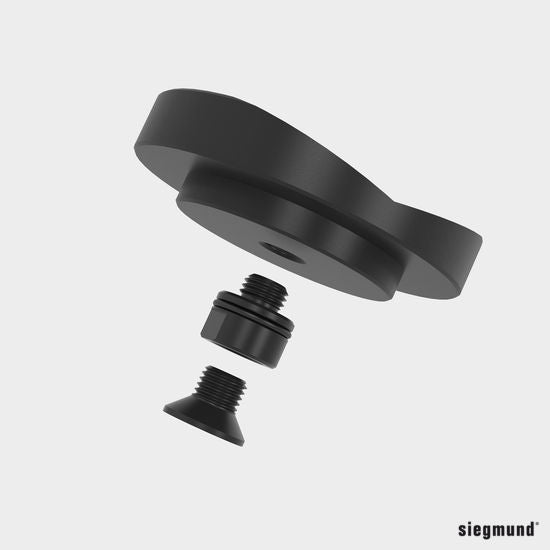

The prism with screwed-in collar can be fastened in the bore holes and securely fixed using the M16 countersunk screw (Item No. US009410). For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.
- M16 Thread for Example (Prism Extensions Item No. US280649)
- Height: 1.18"
- Diameter: 4.7"
- Weight: 3.7 lbs.
